| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 13 - MISCELLANEOUS MINES |
| RK MINE |
|
General. The RK (Russisch Kugel) mine is another in the Improvisieren series. It was captured during the invasion of Russia, improvised locally and used mostly in the Baltic. It is a moored, contact, chemical-horn mine, laid by surface craft for use in maximum depth of water of 300 feet. |
|
Description of Case |
|
Shape |
Spherical |
|
Material |
Steel |
|
Diameter |
34 in. |
|
Charge |
250-lb. cast TNT or hexanite |
|
Total weight in air |
375-lb. approx. |
|
Description of External Fittings |
|
Horns |
Five, equally spaced, around upper hemisphere, 15 in. from center |
|
Hydrostatic switch |
7.5 in diam., in pocket in center of upper hemisphere secured by locking ring with four set screws |
|
Lifting eyes |
Two, 180° apart, 19 in. from center of upper hemisphere; fitted with lifting rings |
|
Mooring eyes |
In center of lower hemisphere |
|
Operation. The mine takes depth by plummet. Dissolution of a soluble plug allows wa-ter pressure to depress the spindle of the hydrostatic switch, closing the firing circuit; and the mine is thus armed. |
|
Standard chemical-horn firing is employed. |
|
The only self-disarming device is the hydrostatic switch, which is designed to disarm the mine by opening the firing circuit upon release of hydrostatic pressure. |
|

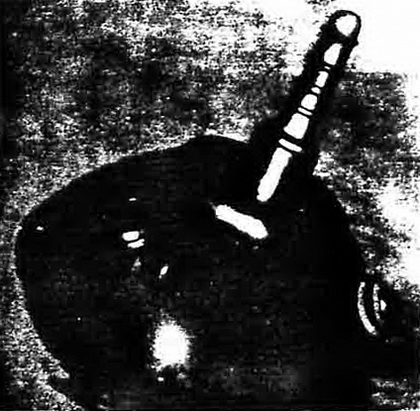

Figure 310 – RK Mine Afloat |
|
|
 |
