| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 13 - MISCELLANEOUS MINES |
| KK MINE |
|
The KK (Kleine Kugel) mine was one of a series of captured enemy, locally improvised, mines. They fall under the general heading of Improvisieren Minen (improvised). The KK originally was a British mine captured at Dunkirk. In this way huge stores of captured enemy mines were improved, modified, and utilized for local defenses. |
|
General. This is a moored or ground, contact, chemical-horn mine, laid by surface craft. |
|
It is a defensive mine for use in shallow water. It may also be used as an anti-vehicu-lar land mine on beaches or as a demolition charge. When used as a land mine, it is bur-ied in the sand. |
|
Description of Case |
|
Shape |
Elliptical |
|
Material |
Steel |
|
Diameter |
15 in. |
|
Charge |
25 lb. approx. |
|
Total weight in air |
65 lb. approx. |
|
Description of External Fittings |
|
Horn |
One, on top center of case, secured by keep ring |
|
Base plate |
In center of lower hemisphere |
|
Pockets |
Four, staggered around upper hemisphere; three blank, fourth contains "A-E" switch. |
|
Lifting eyes |
Two, 180° apart on upper hemisphere |
|

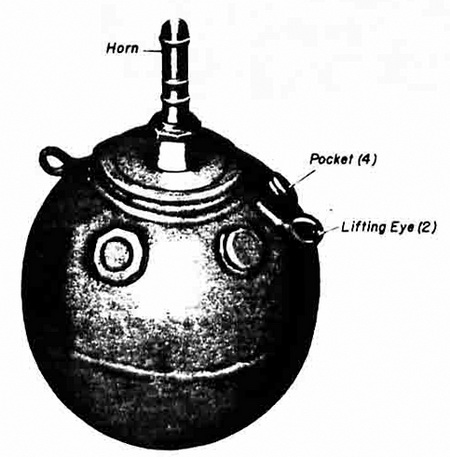

Figure 306 – KK Mine |
|
|
|

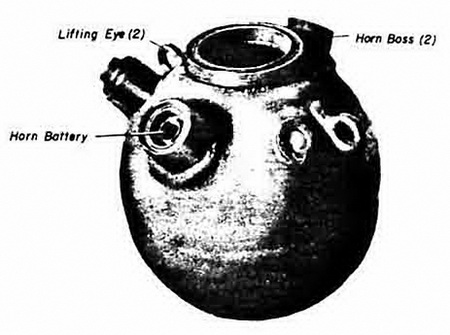

Figure 307 – KK Mine |
|
|
|

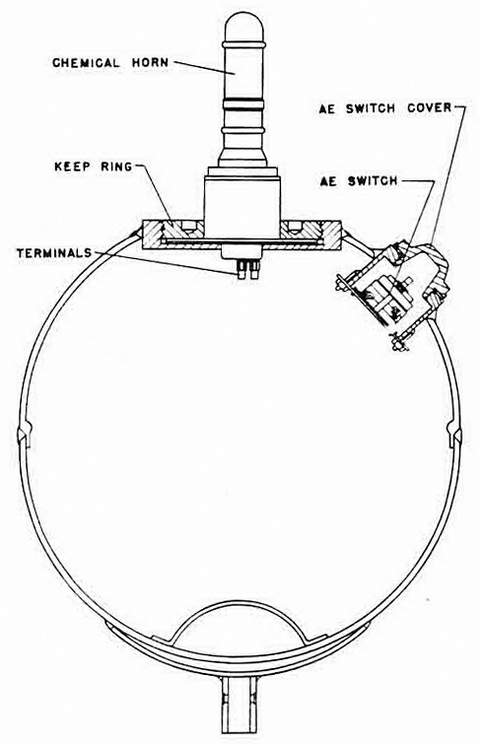

Figure 308 – KK Mine – Cross Section |
|
|
|
Figure 309 – KK Mine Afloat |
|
|
 |
