GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 12 - CLOCKS AND ASSOCIATED DEVICES |
MISCELLANEOUS CLOCKWORK MECHANISMS |
VERZOGERUNGS KONTAKT (VK) (DELAY CONTACT) |
The VK, figures 292, 293, is a spring-driven clockwork that runs for 38 seconds. It is used with the M 1 mine unit and is designed to prvent the mine from firing unless the magnetic influence persists at the end of its preset time. |
Operation. The setting dial is set to the deired number of seconds. When the M 1 mine unit is actuated, it causes the clock solenoid to operate, thus starting the clock. One second before the end of the preset time, Cam C (figure 293) opens switch A, which opens the hold-on circuit for about one second. When the hold-on circuit is opened, the needle will come off the firing contacts. However, if magnetic influence is present at the end of the preset time, C will close the firing ciruit and fire the mine. If the mine does not fire after approximately 80 actuations of the VK, switch D closes cam E, thus arming the mine permanently, allowing it to fire normally. |

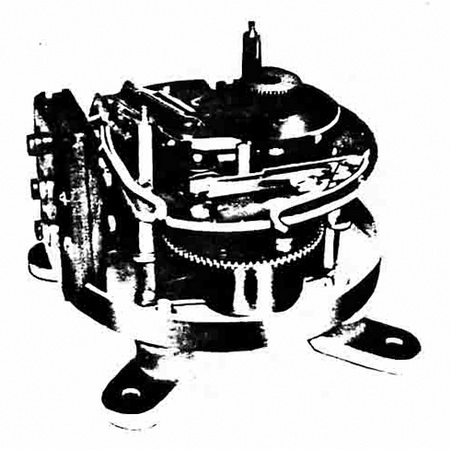

Figure 292– VK II |
|

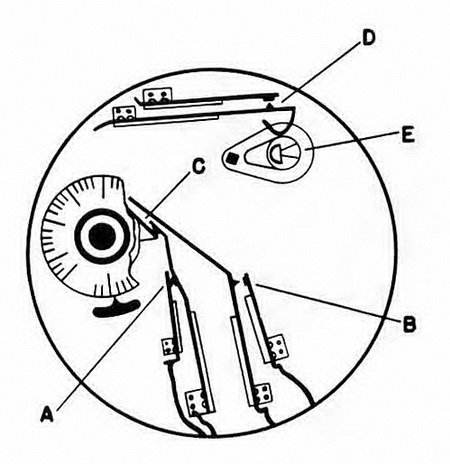

Figure 293 – VK II, Diagram |
|
