GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 8 - EXPERIMENTAL UNITS |
DEVELOPMENT OF OPTICAL MINE-FIRING MECHANISMS |
Luftwaffe Forelle Unit |
Unit Construction. The circuit of the unit is shown in figure 261. Its optical construc-tion was similar to that of SVK test model 4, except that a cylindrical shaft with several transverse walls was fitted to shade the unit from the direct rays of the sun. For opera-tional use the unit was placed in a log with an explosive charge placed about 25 feet be-low, and floated downstream. The circuit is so designed that the unit will fire only after three looks; however, by removing the thermal switches, the required number of looks may be reduced down to one. |
Unit Operation. The operation of the Forelle unit is as follows. While switch E is open, contact arm (1) of relay I moves between its mid-position and position 2 until the sele-nium cell S is illuminated, in which case (1) moves to position 2. After a preset time, switch E is closed by a delay clock, permitting current to flow from the battery through I and opposing the current flowing from S. Resistors R1 and R2 are calibrated to that a light intensity of over 300 lux incident on cell S creates sufficient current to overcome the battery-bucking current. When S is darkened by passage under a bridge (the same rsult would occur due to darkening by evening twilight or other shadows) the battery current overrides the S-current closing contact (1) to position 3, permitting current to flow through thermal switch T1, which closes after a ten-second delay. After the 10 se-conds, the unit should be clear of the bridge shadow, permitting the S current to over-ride the battery current and throw contact (1) back to position 2. Current will then flow through T2, closing contact T2 and opening the circuit for another look. When a second look occurs, the same sequence follows through T3 and T4, closing contact T4. The third look puts the battery across the detonator and the mine fires. |
Designated units in this category were the S 102, S 103, S 104, and S 105. The S 102 was a passive optical unit designed for use in the Wasserballoon aganist bridges. It was started in the Fall of 1944 and completed that winter, and was used operationally. The S 103 was similar to the S 102, a passive optical with six photo-electric cells. This was started the same time as the S 102, but never completed. The S 104 and S 105 were active acoustic units with transmitter and receiver and a light-flashing component of 13 flashes per second. |

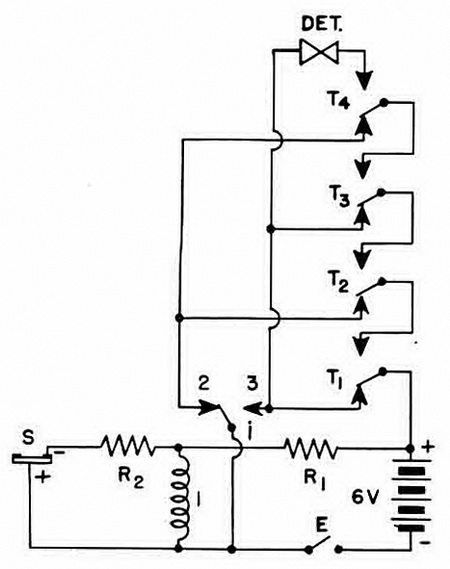

Figure 261 – Forelle Unit Circuit |
|
