| ECHO-SOUNDER MINES TYPES AE 1 AND AE 101 |
|
The Mineshells. The AE 1 was to be mounted in a conical recess similar to that of the AE 101, but directly in the cover plate of a buoyant mine. The charge was 780 pounds. |
|

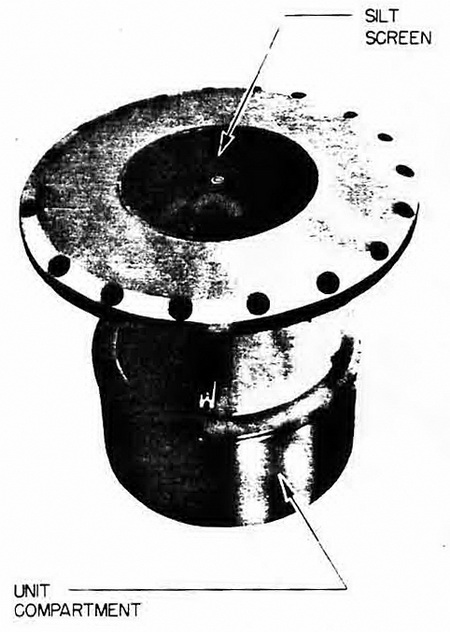

Figure 234 – AE 1 Unit |
|
|
|

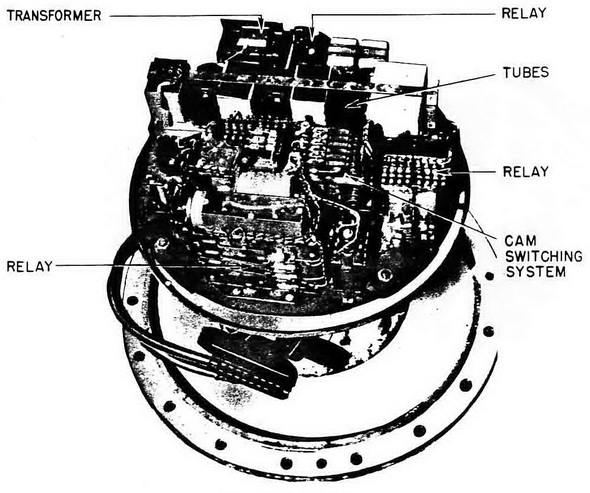

Figure 236 – AE 1 Unit |
|
|
 |
