GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 11 - INFLUENCE MINE UNITS - SVK AND LUFTWAFFE |
Section 6 - SUPERSONIC UNITS |
AA 106 UNIT |
AA 106 Float and Float Release. Handling and releasing the float for the receivers was the chief difficulty encountered in the development of AA 106. Several different ty-pes of shapes of floats were experimented with, but apparently no satisfactory one was developed. The main difficulty was to keep the float oriented properly when moored in a tideway on a short cable. Difficulty was also encountered in properly relasing the float from the mine. The float was carried inside the cylindrical open-ended protective cover (Schutzhaube 10), and released, a short time after the mine reached the bottom, by the firing of an electro-mechanical device. |

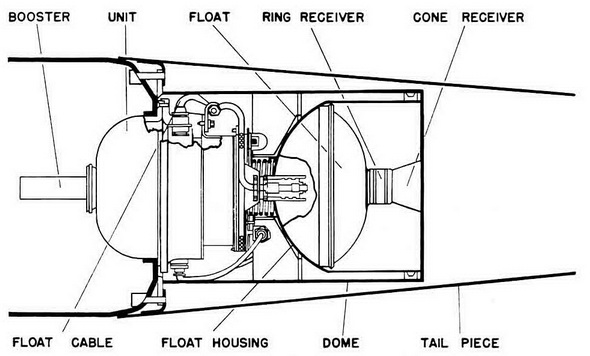

Figure 223 – AA 106 Float in BM 1000 H/L |
|
