GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 10 - SWEEP OBSTRUCTORS |
EXPLOSIVE CONICAL FLOATS |
Sprengboje C and Sprengboje D. These are moored, conical floats used as sweep obstructors, laid by surface craft. They are defensive, anti-sweep devices laid in and moored-mine fields. The maximum length of their mooring cables is 360 feet. |

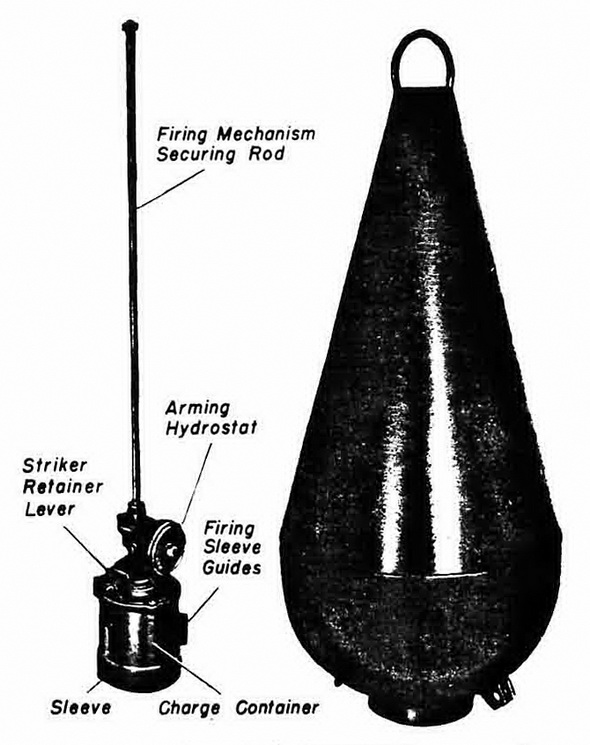

Figure 124 – Sprengboje C |
|
Decription of Case |
Shape |
Conical upper section welded to hemispherical lower section |
Material |
Steel |
Diameter |
15 in. |
Length |
37 in. |
Charge |
1 lb. 13 oz. |
Total weight in air |
50 lb. (approx.) |
Decription of External Fittings |
Lifting eye |
At top of conical section |
Securing lugs |
Two, 180° apart on lower hemisphere |
Soluble plug fitting |
Threaded into side of flange on lower hemisphere |
Firing assembly |
In pocket in base, secured by vertical rod and nut at top of float. Firing sleeve contains hole for safety pin. |

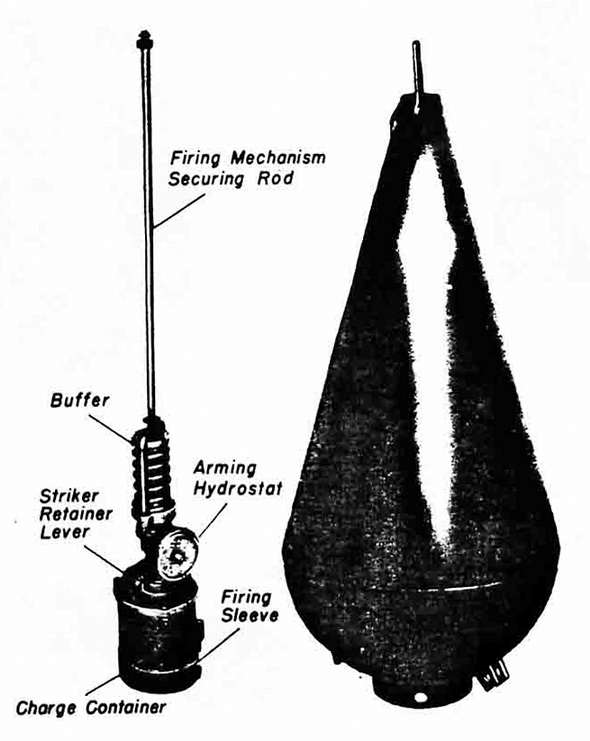

Figure 125 – Sprengboje D |
|
Type D differs from Type C as follows: |
1. The base of the float contains no soluble plug fitting on the flange. |
2. The arming hydrostat locks in the armed position. |
|
???? leases, dropping the mooring with charge still attached and freeing the float only. |
The only self-disarming feature is a device which locks the firing pin when the float surfaces. This is extremely unrealiable. |
