GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 8 - CONTROLLED MINES |
THE RM MINES |
The RMH MINE. The RMH mine was a ground influence and/or controlled mine. It was started in 1935 and completed shortly thereafter. It was intended to replace influence ground mines in the event of a metal shortage. This mine was used extensively in all German controlled coastal waters, both as an influence mine, and as a controlled mine. It could operate in any of the four ways that the RMA operated. |

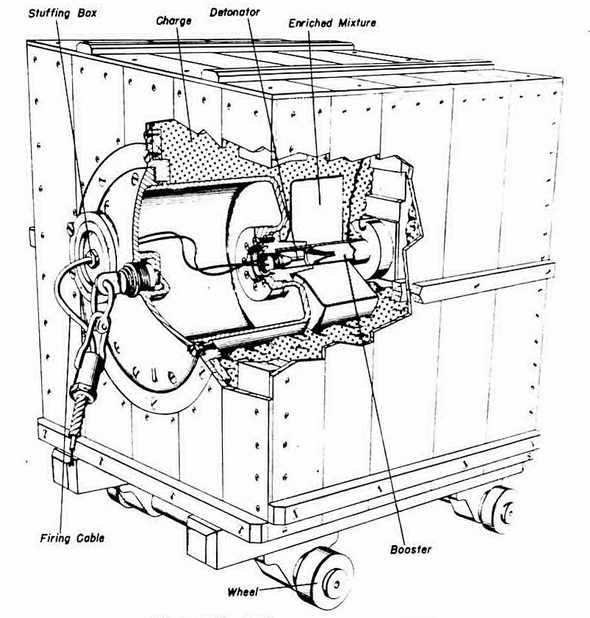

Figure 114 – RMH Mine – Sectional View |
|
Description of Case |
Shape |
Cuboidal; supported by a four-wheeled truck |
Material |
Wood |
Length |
3 ft. 5 in. |
Width |
3 ft. 2 in. |
Height |
3 ft. 10 in. |
Charge |
2,000 lb. cast hexanite |
Description of External Fittings |
Cover plate |
18-3/4 in. diam., flush type on side of case, secured by 18 screws |
Drogue eye |
Screwed to center of cover plate; consists of eye bolt, housing and space for soluble plug |
Booster cover plate |
3-in. diam., aluminum, in center of side of case oppostie cover plate |
Hydrostatic clock |
6-in. diam., 4 in. from droge eye, secured by keep ring |
