GERMAN UNDERWATERS ORDNANCE MINES |
Chapter 8 - CONTROLLED MINES |
THE RM MINES |
The RME MINE. The RME was a small influence-ground mine designed for use in rivers and lakes. It was cuboidal, made of pressed paper reinforced with aluminum strips and loaded with cast hexanite. |

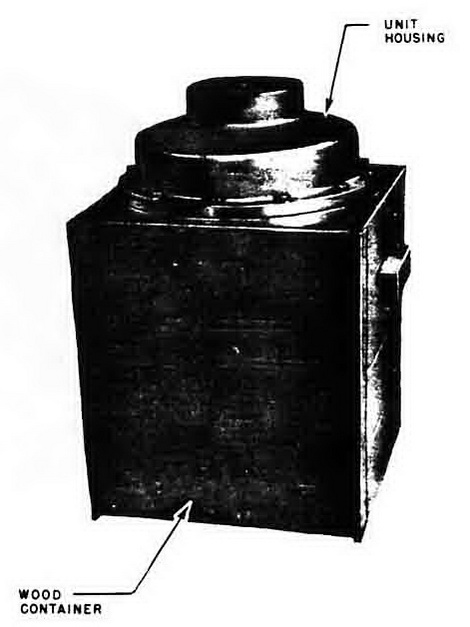

Figure 113 – RME Mine |
|
Description |
Type of firing unit |
M 1 |
Weight of charge |
88 lb. (approx.) |
Total weight |
286 lb. |
Height |
20 in. |
Width |
19 in. |
Length |
17 in. |
Minimum depth |
10 ft. |
Maximum depth |
30 ft. |
Safety distances |
130 ft. |
Case material |
Wood or Prestoff |
