| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 6 - AIRCRAFT MINES - LUFTWAFFE |
| THE BM MINE SERIES |
|

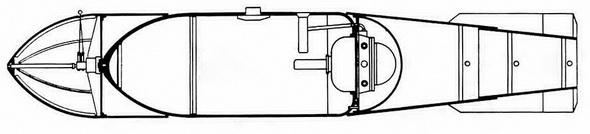

BM 1000 H. The BM 1000 H was developed in 1940 for the MA 101 and MA 102 Mine units; which required a larger unit opening than the BM 1000 I. The holding studs for the unit and the unit portective covering are arranged differently, and the mine case is slightly longer than the BM 1000 I. |
|
Description |
|
Length |
64 in. |
|
Diameter |
26 in. |
|
Weight of charge |
1,500 lb. |
|
Total weight |
1,950 lb. |
|
|
