| GERMAN UNDERWATERS ORDNANCE MINES |
| Chapter 6 - AIRCRAFT MINES - LUFTWAFFE |
| THE BM MINE SERIES |
|
BM 1000 C. The BM 1000 C was fabricated of Dynal, a resin-treated pressed paper, and produced in experimental quantity only. It was under development and had not been used operationally. It was fitted for conventional-type BM 1000 units and accessories. |
|
Description |
|
Length |
69 in. |
|
Diameter |
26 in. |
|
Material |
Dynal |
|
Weight of charge |
1,500 lb. |
|
Total weight |
1,750 lb. |
|

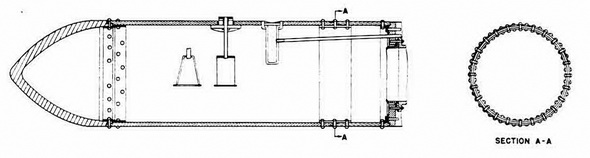

Figure 78 – BM 1000 C Mine – Cross Section |
|
|
