FMC Mine. The FMC Mine was developed and completed between 1926 and 1928. It was a surface-laid, moored, contact, chemical-horn mine using the normal plummet-type anchor and containing a heavier charge than the FMB Mine.

Details. The FMB and FMC both used a wire cable mooring and a spring buffer; how-ever, only the FMC took depth by plummet. Mooring tension pulled out the arming spind-le, closed the mooring safety switch and the "A-E" switch, and tripped the booster-re-lease lever to arm the mines. The "A-E" switch in these mines served only to open or close a switch in the horn circuit. The FMB had two lifting eyes welded to the upper he-misphere. FMC had one lifting eye welded to the upper hemisphere and three anchor-se-curing lugs; one on the upper hemisphere and two on the lower hemisphere. There are two designations for the FMB mine; FMB and FMB (35). These differs only in the weight of explosive. 28 pounds and 44 pounds, respectively. The FMB and FMC differ from each other as follows:

FMB Mine

Diameter of mine case

26 in.

Weight of charge

28 lb. or 48 lb.

Number of horns

5; one, in center of upper hemisphere; 4 equally spaced around upper hemisphere

Depth setting

preset

Minimum depth setting

----

Mooring cable

25 ft. long
½-in. diameter
50 ft. long
½-in. diameter

FMC Mine

Diameter of mine case

30 in.

Weight of charge

88 lb.

Number of horns

same as FMB

Depth setting

1 ft. to 15 ft.

Minimum depth setting

13 ft. plus length of depth-setting mechanism

Mooring cable

160 ft. long - 7/16-in. diameter
475 ft. long - 5/16-in. diameter

The only self-disarming device is the mooring safety switch, which is designed to dis-arm the mine by opening the firing circuit upon release of mooring tension.

Figure 27 – FMC Mine Afloat

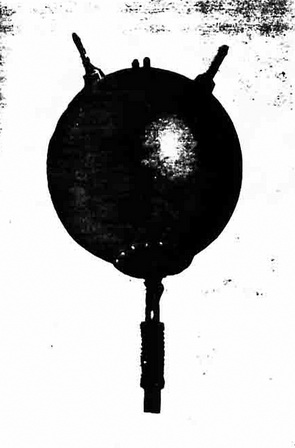

Figure 28 – FMB Mine

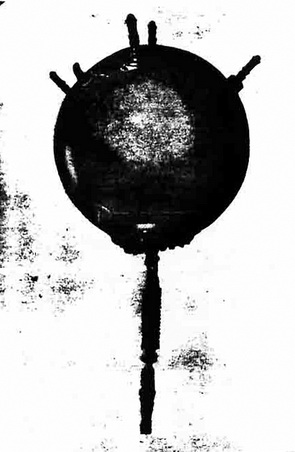

Figure 29 – FMC Mine
