T15

This destructor consists of two brass spar joints filled with an explosive and capped with electric blasting caps. The destructor is designed to break the spar when the elec-tric caps are fired. At present this destructor is used only in the JB-2 or "Loon" missile.

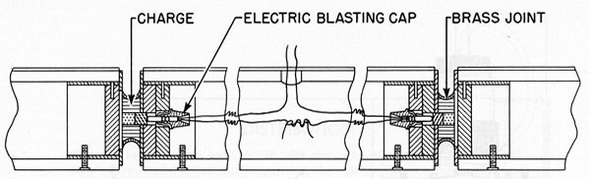

Figure 406. Destructor T15
