| U.S. EXPLOSIVE ORDNANCE |
| PART 7 - GUIDED MISSILES AND FUZES |
| Chapter 21 - MISSILES |
| Section 1 - FUZES |
|
T65E2 (Tail Mechanical Impact) |
|
Use |
Missiles |
|
Functioning |
Primer Detonator M14 with delays of 0.01, 0.025, 0.1, or 0.24 second, or non-delay |
|
Armed condition |
When arming stem is out |
|
Vane span, inches |
5.2 |
|
General: Very similar to the Tail Mechanical Impact Fuze M167, the T65E2 has a dif-ferently shaped plunger and is mounted by a different bracket. It uses the M100 type vanes and reduction gear arming, is of the "elbow" desing because of its projected use in guided missiles, and employs the Primer Detonator M14 with the interchangeable delays. |
|

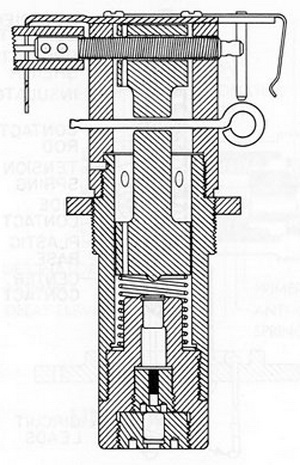

Figure 402. Tail Fuze T65E2 |
|
|
 |
