Projector Type M17 - M22 Series (Obsolete)

Length without tail, inches

6.0

Diameter, inches

1.6

Delay, seconds

6

Height of trajectory, feet

600

Description: The signal is assembled in a cylindrical case, and equipped with a finned tail assembly for stabilization purposes. The primer is located in the head of the signal, and the propelling charge is contained in a small cavity under the head. The end opposite the primer is closed by a press-fit cap to which the tail assembly is attached. The signal has a solid tail stem and an X-shaped fin. Embossed letters on the fin indicate the color and type of star(s).

Operation: The signal is insert nose-first into Ground Projector M3 or M4. The projec-tor is struck smartly on the ground, causing the primer to strike the projector firing pin. The primer ignites the propelling charge, which projects the signal tail-first for approxi-mately 100 feet. The signal then reverses itself and reaches an altitude of approximately 600 feet.



Weight
(pounds)

Fin

Embossed
Letters

Star(s)

M17

0.68

White

WP

White - parachute-supported star

M18

0.74

White

WS

White - cluster of five stars

M19

0.66

Green

GP

Green - parachute-supported star

M20

0.76

Green

GS

Green - cluster of five stars

M21

0.64

Yellow

AP

Amber - parachute-supported star

M22

0.71

Yellow

AS

Amber - cluster of five stars

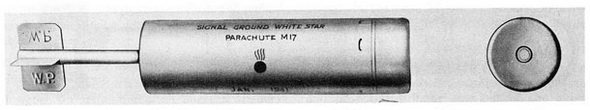

Figure 198. Signal, Ground, White Star, Parachute, M17
