U.S. EXPLOSIVE ORDNANCE |
PART 3 - PYROTECHNICS |
Chapter 9 - GROUND PYROTECHNICS |
Section 1 - SIGNALS |
Signal Light Mk 2 |
Red | White | Green | |
Burning time, sec. |
7 | 6 | 5 |
Candlepower |
300 | 250 | 600 |
Use: Signal Light Mk 2 is used primarily as a distress signal. |
Description: The cartridge, sometimes called the Very signal, is similar in appearance to a 10-gauge shotgun shell. The star charge is a tightly-packed cylinder of pyrotechnic material reinforced with wire and wrapped with quick match. The propelling charge is composed about 25 grains of black powder separated from the star charge by a hard felt pad. |
Identification of the three types |
Red Star - Paper wrapping is red; closing wad is corrugated. |
White Star - Paper wrapping is white; closing wad has a small cone in the center. |
Green Star - Paper wrapping is green; closing wad is smooth. |
Operation: The Signal Pistol Mk 5 may be used, as well as the Hand Projector Mk 3 or Mk 4. |
The primer ignites the propelling charge, expelling the star out of the projector and ig-niting the quick match, which ignites the star as it leaves the barrel and burns as it rises to a height of about 200 feet. |

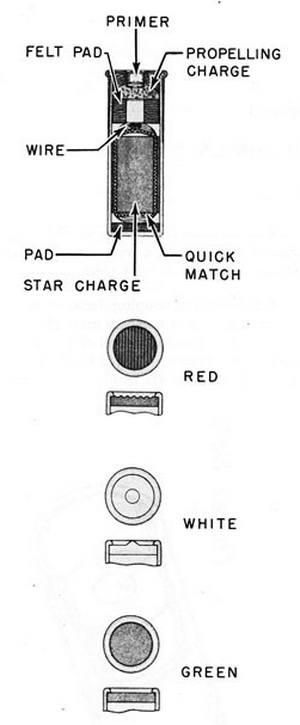

Figure 197. Signal Light Mk 2 |
|
![]() ![]() ![]() |
