3.25-inch Targets

General: As a target for antiaircraft gunners, the rocket is projected with speeds ap-proximating those of an aircraft. It consists of a rocket propulsive unit to which are atta-ched large stabilizing fins, for maximum visibility. Rocket targets are referred to by their assembly number as indicated in the accompanying table. They all consist of a simple rocket motor with three large fins prepared from wooden frames and light-weight fiber board. The fins are 120 degrees apart, each attached by two lugs.

The 3.25-inch Rocket Targets Mk 1 and Mk 2 consist of a motor 36 inches long, to which fins 18 inches by 34 inches are attached. An electrical connection is made by a standard 110-volt plug. The 3.25-inch Target Rocket Mk 1 is standardized at 425 m.p.h. and the Mk 2 at 300 m.ph. One some models, a screamer is put over the nose end.

The Mks 3 and 4 differ from Mks 1 and 2 in that the motor is heavier and the fins are held on by threaded studs instead of lugs. The ballistics are similar; Mk 3 is like Mk 1, and Mk 4 is like Mk 2.

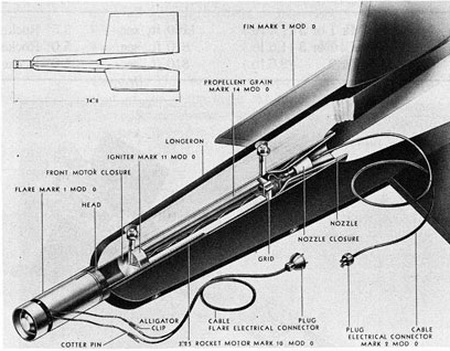

Figure 125. 3.25-inch Target Rocket
