2.25-inch A.R. Practice

General: The 2.25-inch sub-caliber rocket for aircraft was developed for training pur-poses. Inititally, two types were designed to approximate the trajectory of the 3.5-inch and 5.0-inch rockets; however, only the Motor Mk 11 and the Head Mk 3 Mod 2 will be used in future training.

The Mk 1, a California Institute of Technology production, was issued unti adopted and issued by Bureau of Ordnance as the Mk 3 Mod 2. The Mk 2, a California Institute of Technology production, was designed as a slow subcaliber rocket. The complete assemb-ly for the latter is no longer available.

The 2.25-inch Motors Mk 10 and Mk 11 are similar to each other, as are the 2.25-inch Motors Mk 12 and Mk 13. The Motors Mk 10 and Mk 11 differ from the Mk 12 and Mk 13 in that the diameter of the nozzle on the latter is smaller and the weight of the propel-lant of the Mk 10 and Mk 11 is 1.75 pounds, as compared to the weight of 1.12 pounds in the Mk 12 and Mk 13.

The external dimensions of these rockets are the same. For recognition purposes, the 2.25-inch motors Mk 10 and Mk 11 are painted white with black fins, while the Motors Mk 12 and Mk 13 are grey with black fins.

Motor Mk 11 and Head Mk 3 Mod 2: Over-all length of the rocket is 29 inches. Two button-type lugs are provided on the motor tube, spaced approximately 19 inches apart. Four fins are welded to the after end of the motor tube. The propellant is a cylindrical grain of ballistite weighing approximately 1-¾ pounds.

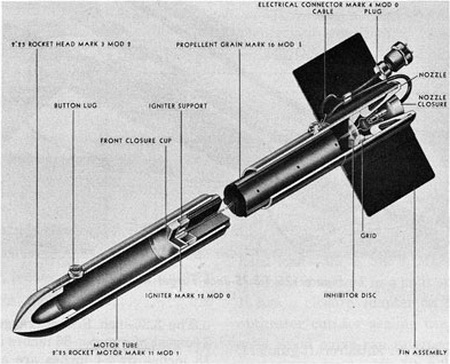

Figure 124. 2.25-inch A.R., Practice
