U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 9 - 14-INCH PROJECTILES
14-inch A.P. Mk 20 Mod 1

Guns used in

14"/45

Over-all length, inches

54.38

Diameter of base, inches

13.977

Distance base to band, inches

3.46

Width of band, inches

4.66

Diameter at bourrelet, inches

13.977

Filling

Explosive D

Weight of filling, pounds

22.90

Weight of loaded projectile, pounds

1,500

Charge/weight ratio

1.5%

Primer

Mk 15 Mod 1

Tracer

Mk 5

Fuzes

Base - Mk 21 Mods 0 and 1

This projectile is used only on the battleships New York and Texas. It is the same as the Mk 16 Mod 8, except for a shortened windshield.

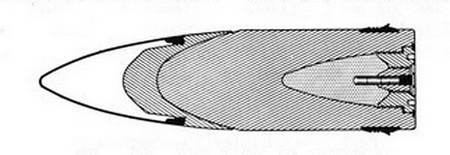

Figure 66. 14-inch A.P. Mk 20 Mod 1
