| 14-inch A.P. Mk 16 Mods 1 - 11 |
|
Guns used in |
14"/45 14"/50 |
|
Over-all length, inches |
|
|
With cap & windshield |
56.00 |
|
Without cap & windshield |
36.72 |
|
Diameter of base, inches |
13.977 |
|
Distance base to band, inches |
3.46 |
|
Width of band, inches |
4.66 |
|
Diameter at bourrelet, inches |
13.977 |
|
Filling |
Explosive D |
|
Weight of filling, pounds |
22.90 |
|
Weight of loaded projectile, pounds |
1,500 |
|
Charge/weight ratio |
1.5% |
|
Primer |
Mk 15 Mod 1 |
|
Tracer |
Mk 5 |
|
Fuzes |
Base - Mk 21 Mods 0 and 1 |
|
The Mod 11 has a slight change in the cap design which moves the windshield threads further forward on the projectile. |
|

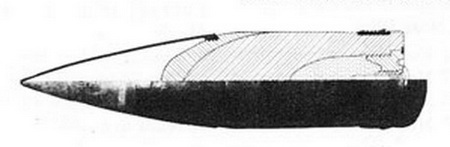

Figure 65. 14-inch A.P. Mk 16 Mods 1 - 11 |
|
|
 |
