U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 5 - 6-INCH PROJECTILES
6-inch H.C., W.P., Illuminating, and Window Mk 39 Mod 0

Guns used in

6"/47 Dual-purpose

Over-all length, inches



With nose fuze

30

Without nose fuze

26.28

Diameter of base, inches

5.985

Distance base to band, inches

1.00

Width of band, inches

2.5

Diameter at bourrelet, inches

5.985

Filling

Explosive D

Weight of filling, pounds

14.09

Weight of loaded projectile, pounds

105

Cartridge Case

Mk 4

Primer

Mk 13 and all Mods

Tracer

Mk 5, Mods 0 and 1

Fuzes



Base

Mk 28 Mods 0 and 1

Nose

Mk 25 (M.T.F.)
  Mk 30 (P.D.F.)
  Mk 47 (V.T.F.)

Auxiliary Detonating Fuze

Mk 43
  Mk 44 (with V.T.F.)

This is the H.C. round designed for the new 6"/47 dual-purpose gun. It is a half-cali-ber longer than the 6-inch H.C. Projectile Mk 34, and will be adaptable for loading of H.C., W.P., Illuminating, or Window fillers.

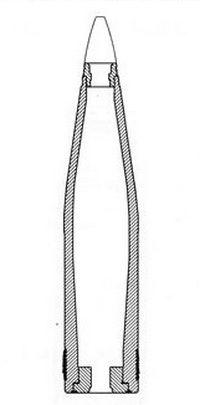

Figure 48. 6-inch H.C., W.P., Illuminating, and Window Mk 39 Mod 0
