U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 5 - 6-INCH PROJECTILES
6-inch H.C. Mk 34 Mods 1 - 7

Guns used in

6"/47 (case)
6"/53 (bag)

Over-all length, inches



With nose fuze

27.045

Without nose fuze

22.225

Diameter of base, inches

5.985

Distance base to band, inches

1.55

Width of band, inches

2.50

Diameter at bourrelet, inches

5.985

Filling

Explosive D

Weight of filling, pounds

13.22

Weight of loaded projectile, pounds

105

Charge/weight ratio

12.6%

Cartridge Case

Mk 4

Primer

Mk 13 and all Mods

Tracer

Mk 5

Fuzes



Base

Mk 28 Mods 0 and 1

Nose

Mk 29 Mods 2 and 3 (P.D.F.)
  Steel nose plug
  Mk 18 Mods 2, 3, and 4 (M.T.F.)
  Mk 50 and all Mods
  Mk 63 Mod 0 (M.T.F.)
  Mk 47 Mod 0 (V.T.F.)

Auxiliary Detonating Fuze

Mk 17 and all Mods
  Mk 46 Mod 0
  Mk 54 Mods 0 and 1
  Mk 44 Mods 0 and 1

A nose cap may be threaded to the projectile body over the nose fuze for moisture-proofing purposes.

When this projectile is used in the 6"/53 bag gun, the Primer Mk 15 Mod 1 is used.

The Auxiliary Detonating Fuze Mk 54 is replacing the Auxiliary Detonating Fuze Mk 17 and Mk 46 in all assemblies.

A specically cavitized Mk 34 round, designed for use in the 6"/47 gun only, is being produced for assembly with the V.T. Fuze Mk 47. When this fuze is used, the Base Fuze Mk 28 is also employed, without tracer. This feature differs from other V.T. fuzed projec-tiles, which take no base fuze. The Auxiliary Detonating Fuze Mk 44 will be used only in conjunction with the V.T. Fuze Mk 47.

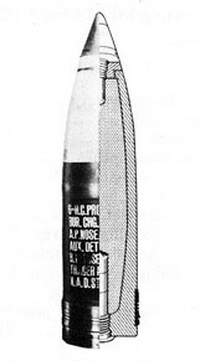

Figure 47. 6-inch H.C. Mk 34 Mods 1 - 7
