U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 3 - 4-INCH PROJECTILES
4-inch H.C. Mk 15 Mod 1 and Ex-2 and Ex-2-1

Guns used in

4"/50

Overall length, inches



With nose fuze

18.00

Without nose fuze

14.28

Diameter of base, inches

3.96

Distance base to band, inches

2.25

Width of band, inches

1.85

Diameter at bourrelet, inches

3.985

Filling

Explosive D

Weight of filling, pounds

2.71

Weight of loaded projectile, pounds

33.00

Charge/weight ratio

8.21%

Cartidge Case

Mk 2 Mods 1 and 4

Primer

Mk 13 and all Mods

Tracer

Mk 4 or Mk 9

Fuzes



Base

Mk 31 or Mk 28 (B.D.F.)

Nose

Mk 30 Mods 1, 2, 3 (P.D.F.)



Mk 22 Mods 1-5 (M.T.F.)



Steel nose plug



Mk 51 and all Mods (M.T.F.)

Auxiliary Detonating Fuze

Mk 17 or Mk 46



Mk 54 Mod 0

The Base Fuze Mk 31 is preferred for this projectile. The Tracer Mk 4 is used with the Base Fuze Mk 31; the Mk 9, with the Fuze Mk 28.

The 4"/50 Ex-2 and Ex-2-1 are identical to Projectile Mk 15 except they are one pound heavier. Approximately 18,000 of the Ex projectiles were manufactured and issued.

The Auxiliary Detonating Fuze Mk 54 is replacing the Mk 17 and the Mk 46 fuzes in all assemblies.

Assembly of the Nose Fuze Mk 22 (M.T.F.) with this projectile has stopped.

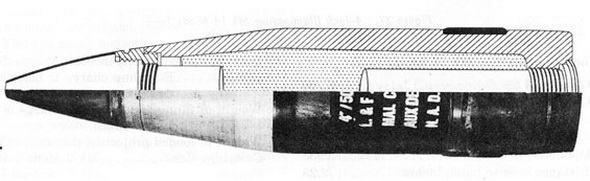

Figure 26. 4-inch H.C. Mk 15 Mod 1
