| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 3 - 4-INCH PROJECTILES |
| 4-inch Common Mk 10 Mods 1, 2, and 3 (Obsolete) |
|
Guns used in |
4"/50 |
|
Overall length, inches |
15.80 |
|
Diameter of base, inches |
3.96 |
|
Distance base to band, inches |
2.75 |
|
Width of band, inches |
1.33 |
|
Diameter at bourrelet, inches |
3.985 |
|
Filling |
Black powder and TNT |
|
Weight of filling, pounds |
1.39 |
|
Weight of loaded projectile, pounds |
33.0 |
|
Charge/weight ratio |
4.21% |
|
Cartidge Case |
Mk 2 or Mk 2 Mod 3 |
|
Primer |
Mk 13 and Mods |
|
Tracer |
Integral in fuze |
|
Fuzes |
Base – Mk 10 Mod 4 |
|
For target practice, this round is also issued B.L. & P. or B.L. & T. with adapter and Tracer Mk 6 Mod 1. |
|

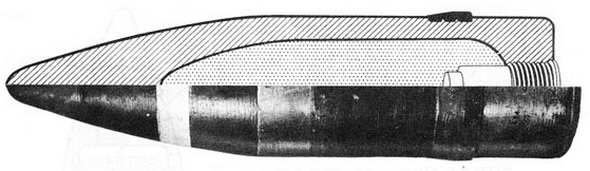

Figure 25. 4-inch Common Mk 10 Mods 1 - 3 |
|
|
|
|
