U.S. EXPLOSIVE ORDNANCE
PART 1 - PROJECTILES, PROPELLANT,
AND PROECTILE FUZES
Chapter 1 - Projectiles
Section 1 - Introduction

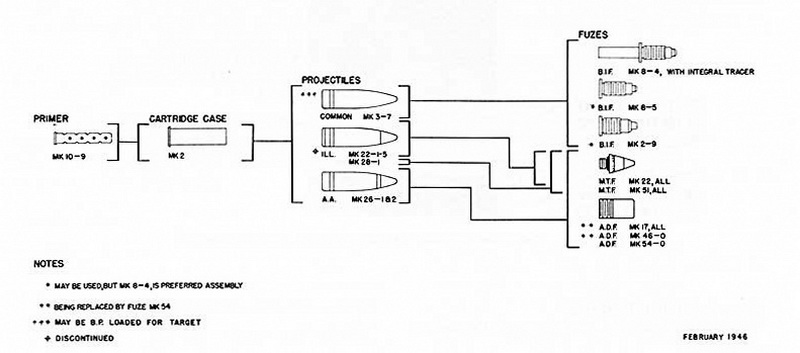

Figure 2. 3"/23 Case Gun (Ammunition)

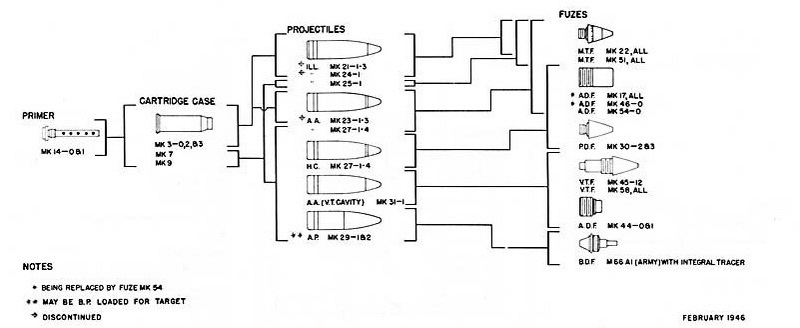

Figure 3. 3"/50 Case Gun (Ammunition)

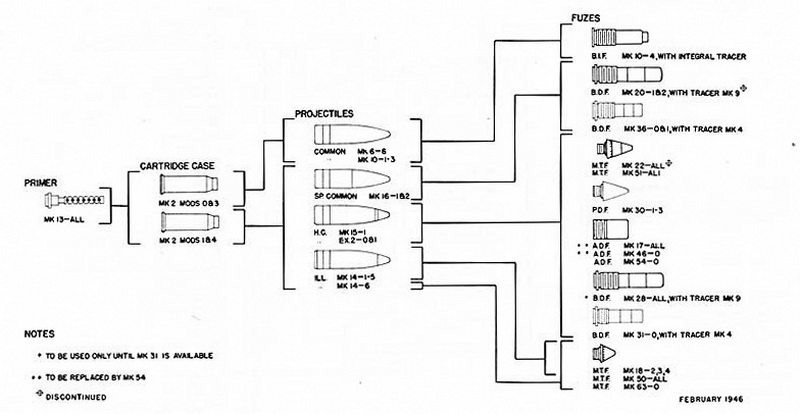

Figure 4. 4"/50 Case Gun (Ammunition)

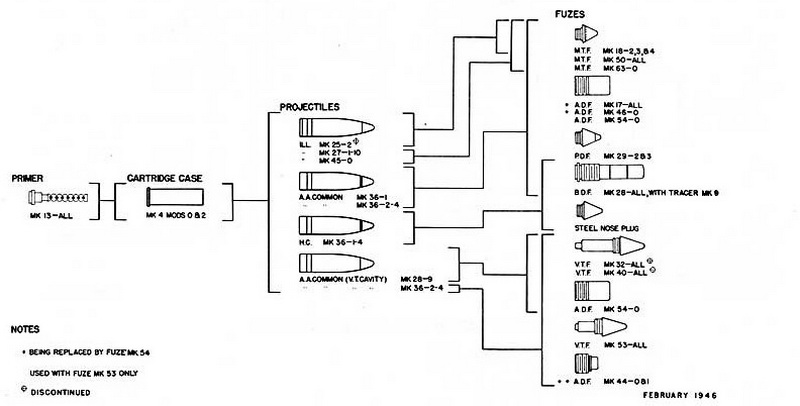

Figure 5. 5"/25 Case Gun (Ammunition)

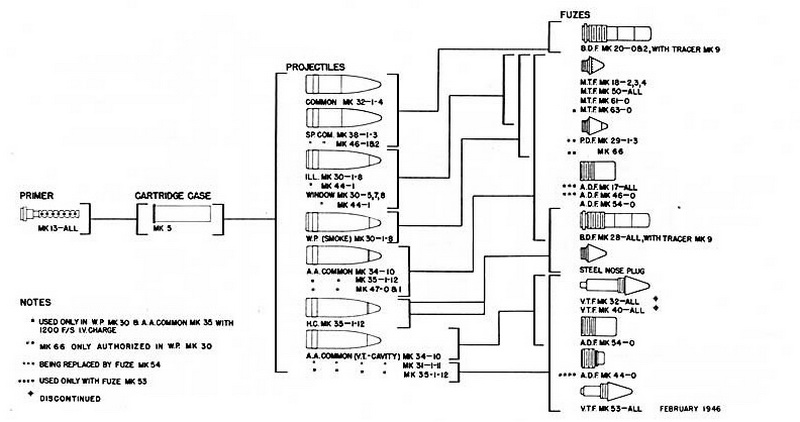

Figure 6. 5"/38 Case Gun (Ammunition)

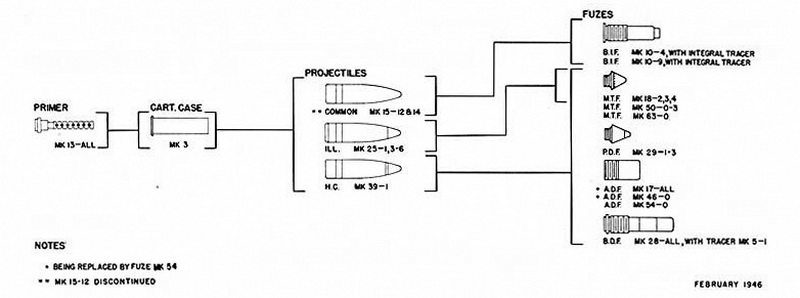

Figure 7. 5"/51 Case Gun (Ammunition)

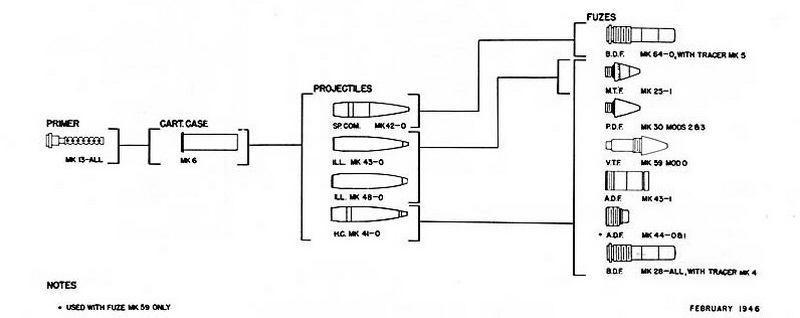

Figure 8. 5"/54 Case Gun (Ammunition)
