| U.S. EXPLOSIVE ORDNANCE |
| PART 1 - PROJECTILES, PROPELLANT, AND PROECTILE FUZES |
| Chapter 1 - Projectiles |
| Section 1 - Introduction |
|
Color and markings of new projectiles 3-inch and larger |
|
Following are the markings called for in the new specifiactions (See figure 1): |
|
Explosive indicator: |
|
Yellow |
Explosive D |
|
Grey |
Black Powder |
|
Green |
TNT |
|
One-half grey and one-half green band |
|
|
|
TNT and Back Powder mix |
|
Red |
Inert material or empty |
|
Blue |
Composition A |
|
Time fuze stripe: Projectiles having a nose time fuze shall have a ¼-inch white stripe painted longitudinally from the stationary lug on the fuze two inches aft. |
|
Body color |
|
Black |
A.P. |
|
Slate gray |
Common |
|
Green |
A.A., H.C., and A.A. Common |
|
Light blue with two white stars |
Illuminating |
|
Aluminum |
Window |
|
White |
Shrapnel |
|
Ocean gray |
Smoke, Gas, or Incendiary |
|
Red |
Target ammunition |
|
V.T. Fuzed: The letters "V.T." ¾-inch high are stenciled just before the rear edge of the paint indicating the bruster charge. |
|
Tracer band: A white band with four dots 90° apart indicates the color of the tracer |
|
Spotting band: The color indicates the color of the spotting charge. |
|
"Window" mark: This consists of a one-inch high "W" on each side, 180° apart, just abaft the forward bourrelet. |
|
Stencilling on body: The following information is stencilled between the rotating band and and the forward bourrelet on new projectiles: |
|
Ammunition lot number |
|
Caliber and type of projectile |
|
Mark and Mod of projectile |
|
Type nose fuze (whether M.T.F., P.D.F., V.T.F., Mk 32 is similar types, or Dummy Nose Plug) – Mark and Mod of fuze – Lot number of fuze (for Mk 32 and similar ty-pes only) |
|
Mark and Mod of auxiliary detonating fuze |
|
Mark and Mod of base detonating fuze |
|
Mark and Mod of tracer – Color of Tracer |
|
Mark and Mod of guns in which projectile can be used |
|
Mark and Mod of "Window" load |
|
Stamped on rotating band |
|
Mark and Mod of projectile |
|
Size and type of projectile |
|
Lot number and year of specifiaction |
|
Inspector's seal and initials |
|
Sometimes the manufacturer's name is included here. |
|
Stamped on base or on base plug |
|
Mark and Mod, size, and type of projectile |
|
Lot number, year of specification |
|
Inspector's seal and intial |
|
Manufacturer's name |
|
The serial number of the projectile will also be stamped on the base plug on the side of the body, and on the windshield if present. |
|
Two green bands ½-inch apart – Persitent casualty gas |
|
One green band – Non-persistent casualty gas |
|
One red band – Harassing gas |
|
One yellow band – Smoke |
|
One purple band – Incendiary |
|
Also, on projectiles having a chemical filler, there is stencilled the type of chemical, such as SMOKE, INCENDIARY, or GAS, and the symbol or letter designating the particular filler as below: |
|
Persistent Casualty Gas |
| Mustard | H |
| Purifired mustard | H.D. |
| Mustard and Lewisite | H.L. |
| Ethyldichlorarsine | E.D. |
| Chloropicrin | P.S. |
| Diphosgene | D.P. |
|
Lewisite |
L. |
|
Non-Persistent Casualty Gas |
| Phosgene | C.G. |
| Chlorine | C.L. |
|
Hydrocyanic acid |
A.C. |
|
Harassing Gas |
| Chloracetophenone | C.W. |
| Chloracetophenone solution | C.N.S. |
| Chloracetophenone training solution | C.N.B. |
| Bromobenzylcyanide | B.B.C. |
| Adamiste | D.M. |
| Diphenylchlorarsine | D.A. |
|
Diphenylcyanarsine |
D.C. |
|
Smoke |
| White phosphorus | W.P. |
| Titanium Tetrachloride | F.M. |
| Sulfurtiroxide plus chlorosulfonic acid | F.S. |
| Hexachlorethane type mixture | H.C. |
|
Plasticized white phosphorus |
P.W.P. |
|
Incendiary |
| Thermite | T.H. |
| Thickened gasoline (Napalm) | N.P. |
|
Thickened gasoline (Isobutyl Methylmethacrylate) |
I.M. |
|
Incendiary mixture |
P.T. |
|

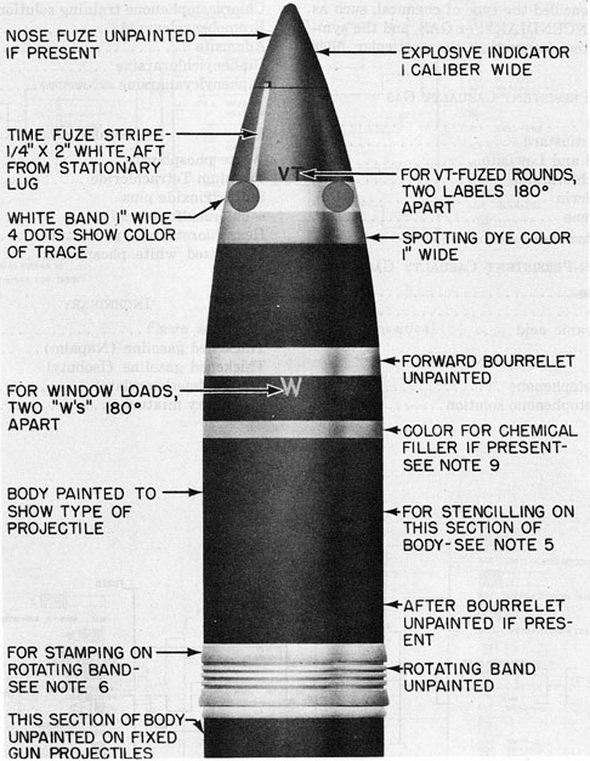

Figure 1. Color and Marking of Projectiles (3-inch and lager) |
|
|
|
|
