BOMB FUZE DATA |
Part 2 - ARMY BOMB FUZES |
BOMB NOSE FUZE M149 |
Characteristics |
Action - Impact, instantaneous or 0.10-sec. delay. (Similar to AN-M103A1 except that booster cap and body threads have been modified to fit Japanese Navy bombs.) |
Modification - Experimental lots had T54 designation and did not incorporate all safety features found in M148. |
Status - Service. |
Restriction on Use - Because of inadequate safety features, fuzes with experimental designation T54 are not to be used by Naval activities. No restrictions on use with fuzes with M148 designation. |
Air Travel to Arm - (Approximate) |
510 ft. for delay |
765 ft. for instantaneous |
Indication of Arming - Arming discs missing. |
Figure 87. - Outline Drawing of Nose Fuze M148 |
Bombs in Which Used |
Japanese Bombs up to 250 kg. size. |

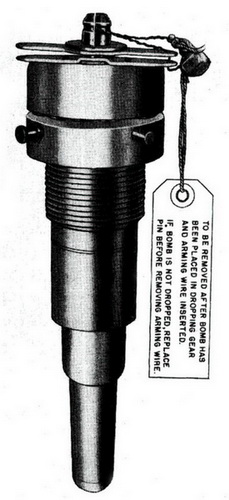

Figure 88. - Nose Fuze M148 |
Weight and Packing |
Weight of Fuze Fully Loaded - Approximately 3.7 lb. |
Standard Packing - Nine fuzes, each in a metal container, are packed in a wooden crate having a volume of 1.2 cu. ft. and weighing 50 lb. gross. |
