| BOMB FUZE DATA |
| Part 2 - ARMY BOMB FUZES |
| BOMB NOSE FUZE AN-M147 |
|
Characteristics |
| Action - Mechanical time, 5 - 92 sec. or instantaneous upon impact. |
| Modification - None. |
| Status - Service. |
| Restriction on Use - None |
| Air Travel to Arm - Approximately 1300 ft. |
| Indication of Arming - Safety block missing. |
|
|
|

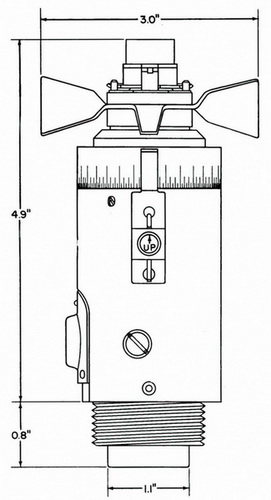

Figure 85. - Outline Drawing of Nose Fuze AN-M147 |
|
Bombs in Which Used |
|
|
|
Figure 86. - Nose Fuze AN-M147 |
|
Weight and Packing |
| Weight of Fuze Fully Loaded - Approximately 1.6 lb. |
| Weight of Booster - 0.3 oz. tetryl. |
|
Standard Packing - Fifteen fuzes, each in a metal container, are packed in a wooden crate measuring 20.6 in. x 9.0 in. x 12.2 in. and weighing about 45 lb. gross. |
|
|
