BOMB FUZE DATA |
Part 1 - NAVY BOMB FUZES |
BOMB TAIL HYDROSTATIC FUZE AN-Mk 230 |
Characteristics |
Action - Hydrostatic arming and firing, adjustable to firing depths of 25, 50, 85, 100, and 125 ft. |
Modification - Mods 1, 3, 4, 5, and 6. |
Mods 0, 1, and 3 are similar; Mods 4, 5, and 6 incorporate added safety features. Mods 5 and 6 have accuracy of 25-ft. depth setting emphasized; Mod 4 has accuracy of 50-ft. depth setting emphasized. |
Status - Mods 0, 1, and 3 - Obsolete. |
Mods 4, 5, and 6 - Service. |
Restriction on Use - Mods 0, 1, and 3 are not to be used from Naval aircraft. No res-trictions on use of Mods 4, 5, and 6; but use of Mods 5 and 6 is preferred because of more accurate 25-ft. depth setting. |
Air Travel to Arm - Approximately 300 to 400 ft. |
Indication of Arming - No external indication of arming. |

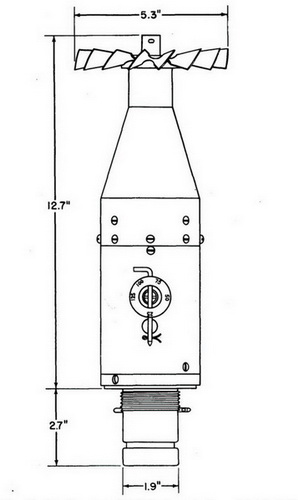

Figure 18. - Outline Drawing of Tail Hydrostatic Fuze AN-Mk 230 |
Bombs in Which Used |

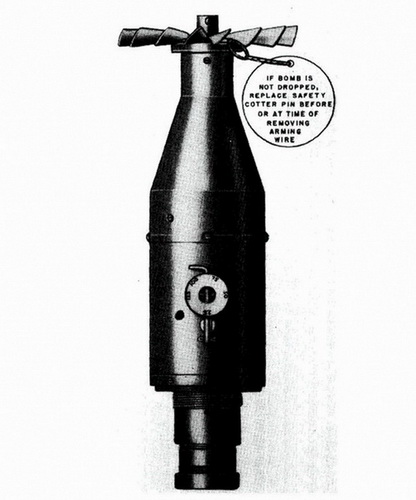

Figure 19. - Tail Hydrostatic Fuze AN-Mk 230 |
Weight and Packing |
Weight of Fuze Fully Loaded - Approximately 14.5 lb. |
Weight of Booster - 0.9 oz. tetryl. |
Standard Packing - Four fuzes, each in a metal container, are packed in a metal crate measuring 16.5 in. x 11.6 in. x 11.6 in. and weighing about 75 lb. gross. |
