| BOMB FUZE DATA |
| Part 1 - NAVY BOMB FUZES |
| BOMB TAIL HYDROSTATIC FUZE Mk 229 |
|
Characteristics |
|
Action - Hydrostatic arming and firing, adjustable to firing depths of 25, 50, 85, 100, and 125 ft. |
| Modification - Mods 0, 1 and 2 differ only in the identity of the manufacturer. |
| Status - Obsolete. |
| Restriction on Use - Not to be used by Naval activities. |
| Air Travel to Arm - Approximately 400 to 500 ft. |
| Indication of Arming - No external evidence of arming. |
|
|
|

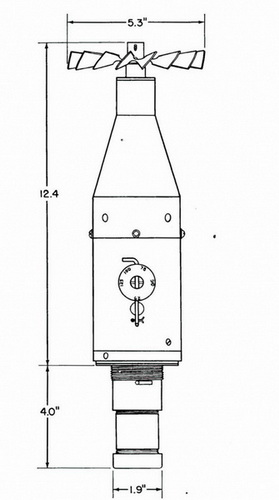

Figure 18. - Outline Drawing of Tail Hydrostatic Fuze Mk 229 |
|
Bombs in Which Used |
|
650- and 700-lb. depth bombs - All |
|
500-lb. Demo Bomb Mk 9 |
|
1000-lb. Demo Bomb Mk 9 |
|
1000-lb. G.P. Bomb Mk 36 |
|
|
|
Figure 19. - Tail Hydrostatic Fuze Mk 229 |
|
Weight and Packing |
| Weight of Fuze Fully Loaded - Approximately 14.5 lb. |
| Weight of Booster - 1.6 oz. tetryl. |
|
Standard Packing - Four fuzes, each in a metal container, are packed in a metal crate measuring 17.5 in. x 11.6 in. x 11.6 in. and weighing about 75 lb. gross. |
|
|
