| JAPANESE UNDERWATER ORDNANCE |
| Chapter 1 - JAPANESE MINES |
| Section 7 - MINE TYPE JF |
|
A controlled ground mine designated by the Japanese as "Type 94, Model 2". It is u-sed defensively and laid from surface craft in harbors or harbor entraces and controlled from observation posts on the shore. It was used, however, on Adak, Alaska, as a con-trolled land mine. It may also be used as a controlled mine planted in shallow water ap-proaches to beaches. |
|
General characteristics of the mine are as follows: |
|
Case |
|
Shape – Hemispherical, 28".4 in diameter, 25".6 high, with a steel skirt 9" high and 24" in diameter, welded around the top. The mine is bolted to a four-wheeled cast-iron an-chor truck. |
|
Color – Black. |
|
Mateial - Steel. |
|
Charge – 190 lbs. (approximately) granular Type 88 explosive. |
|
Total Weight – 580-lbs. (approximately). |
|
External Fittings |
|
Booster Cover Plate – 4" in diameter, on side of case, 3".5 below edge of skirt, se-cured by six bolts. The firing cable enters through a stuffing box in the center of this plate. |
|
Lifting Holes – Four, 1".2 in diameter, on the skirt, 90° apart and 1" below the top. |
|
Cover Plate – 5".2 in diameter in the top center of the case. |
|
Pad Eye – One, on the case, 13" below the upper edge of the skirt. |
|
Cable Clamp – Shackled to the pad eye. This prevents strain on the cable from being transmitted to the detonator. |
|
Mine Anchor Truck – Rectangular, cast iron, fitted with four wheels. |
|
Operation |
|
The detonator is housed in the booster during assembly, and, when laid, a rubber-co-vered firing cable connects the mine with an observation post on the shore. The mine is fired electrically by an observer. |
|
Safety Precautions |
|
The mine contains no self-disarming features. When used as a land mine, it is likely to be buried with other explosives. |
|

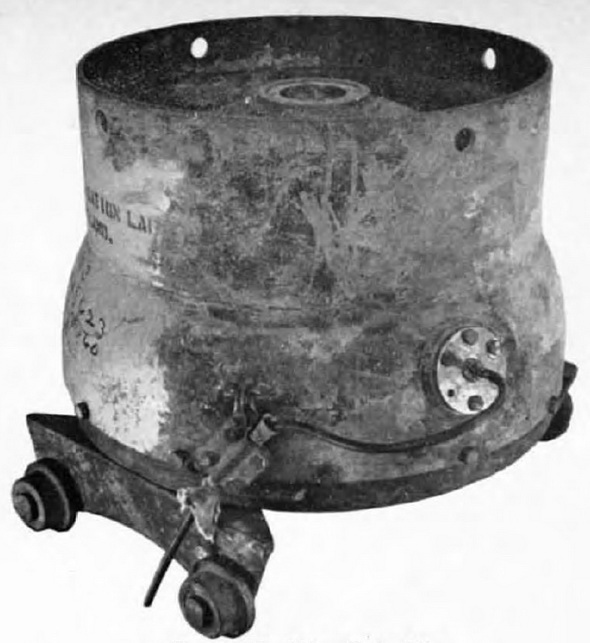

Figure 15 – Mine Type JF. |
|
|
|

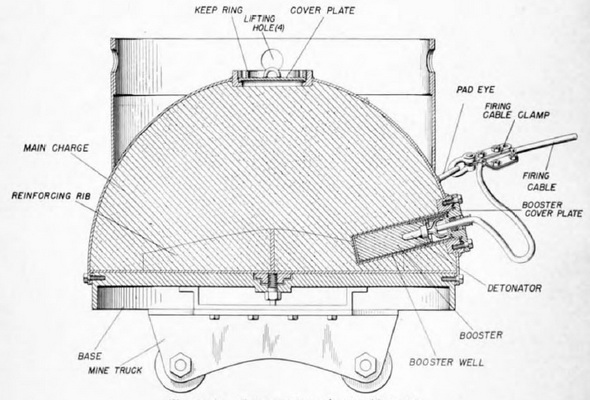

Figure 16 – Cross section of mine Type JF. |
|
|
|
|
