| GERMAN CHEMICAL WARFARE MATERIAL |
| Part IV - SPECIAL EQUIPMENT |
| Section B - COLLECTIVE PROTECTOR EQUIPMENT |
|
IV–B–21 |
| PREFILTER, AIR, 2.4 |
| Vorfilter 2,4 |
|
VW Filter 2,4 |
| PURPOSE: |
|
This item serves as a preliminary filter on the collective protective installation (2.4) removing the larger dust particles and foreign materials from the air drawn into the sys-tem, thereby increasing the life of the canisters. |
| MARKINGS: |
|

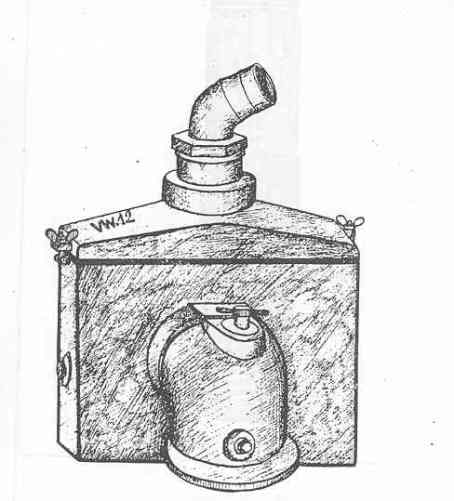

The side containing the outlet connection has the marking "VW 2,4" instead of "VW 1,2" as in the drawing. |
| DESCRIPTION: |
|
This prefilter is very much the same as the 1.2 model except that it has a larger case, a larger primary filter, and two "V" shaped secondary filters. The second of the "V" sha-ped filters is attached just above the first one. For further description of this model, re-fer to the description of the 1,2 model. |
|
IV–B–21 |
| Prefilter, Air |
| Vorfilter |
| VW Filter |
|
|
|
|
