GERMAN CHEMICAL WARFARE MATERIAL |
Part IV - SPECIAL EQUIPMENT |
Section B - COLLECTIVE PROTECTOR EQUIPMENT |
IV–B–18 |
TUBE, CONNECTION |
Verbindungsstück |
PURPOSE: |
The purpose of this pipe is to replace the gas and smoke canisters in a collective pro-tector installation when there is no immediate danger of gas. The installation can then be used for ventilation purposes. |
MARKINGS: |
The pipe has a red striped band about its center with the marking "1,2" or "2,4" pain-ted on the band in white. |
DESCRIPTION: |
The "1.2" tube consists of a length of 3 inch plastic pipe, 16.3 inches long and threa-ded on both ends. It is intended to replace the 1.2 smoke and gas canisters when the collective protector installation is being used for ventilation purposes. |
The "2.4" tube consists of a 19.7 inch length of plastic pipe, 4.3 inches in diameter; it replaces the "2.4" gas and smoke canisters in a similar manner to the "1.2" tube. |

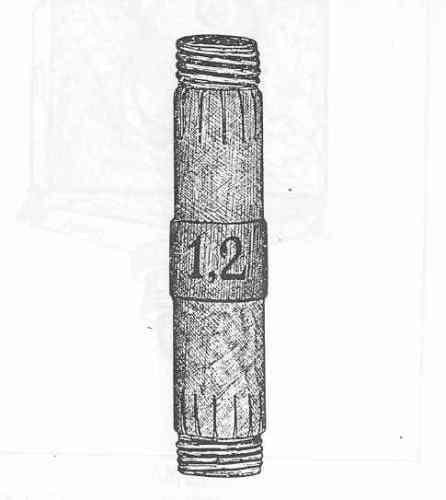

IV–B–18 |
Tube, Connection |
Verbindungsstück |
