GERMAN CHEMICAL WARFARE MATERIAL |
Part III - PERSONAL EQUIPMENT |
Section D - GAS MASK ACCESSORIES |
III–D–16 |
MICROPHONE, FACEPIECE, GM |
Anschaltklinke für Telephon-Gasmaske und Mikrophonsysteme |
PURPOSE: |
The purpose of this microphone adapter is to obviate the necessity of changing the cover of the ordinary hand-microphone telephone receiver. It enables the wearer of the German telephonic gas mask to speak into a microphone system. |
MARKINGS: |
No identification markings are present. |
DESCRIPTION: |

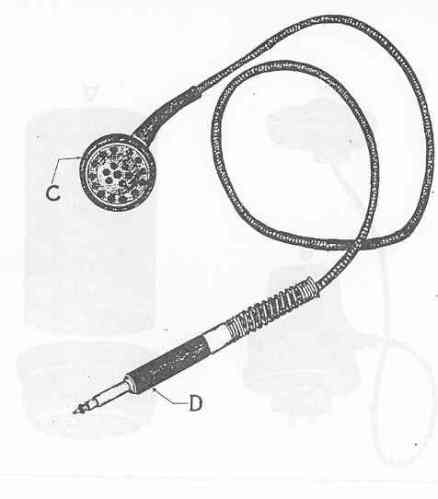

The microphone (C) is 1.3 inches in diameter and can be attached to the special out-let of the telephonic gas mask with a black metal adapter internally threaded. The micro-phone is fitted with a black connecting cord, 28 inches long, and a plug (D) which fits into the hand-microphone without affecting the use of the latter. |
III–D–16 |
Microphone, Facepiece, GM |
Anschaltklinke für Telephon-Gasmaske und Mikrophonsysteme |
