GERMAN CHEMICAL WARFARE MATERIAL |
Part III - PERSONAL EQUIPMENT |
Section D - GAS MASK ACCESSORIES |
III–D–4 |
SHEET, ANTI-DIM, HEADWOUND |
Klarscheiben für Gasschutzhauben |
PURPOSE: |
This anti-dim sheet is used to prevent moisture from fogging the window of the Face-piece, GM, Headwound. |
MARKINGS: |
The metal box container for the sheets is marked "Klarscheiben für Gasschutzhauben". The word "Innenseite" is printed in black on the inside of the sheet at the top edge. |
DESCRIPTION: |
Ten sheets are packed in the container, each separated by a paper insert, and the entire contents are held in place by a wire clamp fastened to the inside of the box. The sheets are made of transparent plastic coated on the side marked "Innenseite" width ge-latin. The overall dimensions are 5.7 x 7 inches. |
The metal box container for the sheets is painted dark green, and the above mentie-ned marking is stencilled on the cover with white paint. The metal box has a slip-on co-ver and overall dimensions: 0.7 x 5.5 x 7.3 inches. |

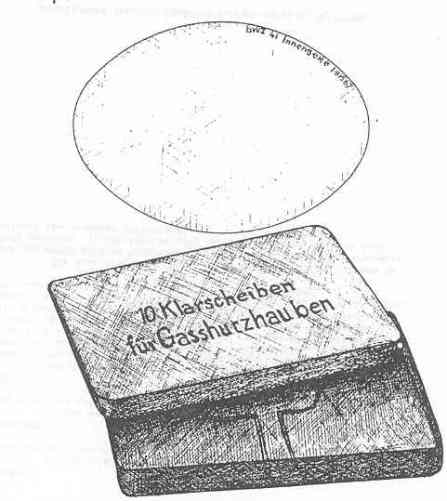

III–D–4 |
Sheet, Anti-Dim, Headwound |
Klarscheiben für Gasschutzhauben |
