GERMAN CHEMICAL WARFARE MATERIAL |
Part III - PERSONAL EQUIPMENT |
Section B - GAS MASK CANISTERS |
III–B–9 |
CANISTER, GM, FB 36 |
Filterbüchse 36 |
FB 36 |
PURPOSE: |
The purpose of this canister is to remove chemical warfare agents from the atmos-phere, when used in conjunction with a connecting hose and face-piece |
MARKINGS: |
These canisters are marked "FB 36". In addition, numerous goverment and manufactu-rers' markings are present. |
DESCRIPTION: |
The canisters are of the box-type, and made of green lacquered, ribbed tin plate, measuring 2.7 x 4.9 inches in cross section and 8.3 inches in height. When new, the rec-tangular inlet orifice in the base is sealed with a strip of adhesive, while the outlet at the neck is closed with a metal screw cap. A rubber disc valve is located in the neck of the canister. |

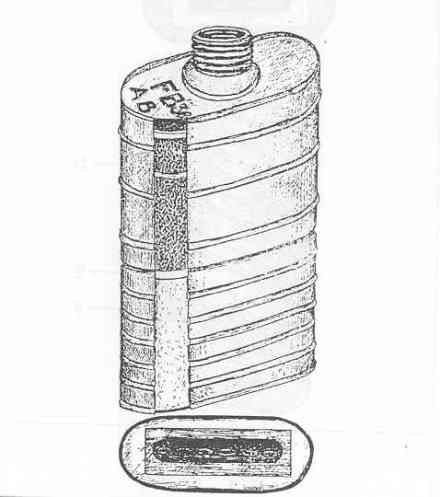

The sectionalized view shows the three layers of filling found in this type of canister. The top two layer consists of extruded charcoal, and the bottom layer consists of a cot-ton-asbestos mass molded around a central dome. |
III–B–9 |
Canister, GM, FB 36 |
Filterbüchse 36 |
