| GERMAN CHEMICAL WARFARE MATERIAL |
| Part II - ARIAL WEAPONS AND MUNITION |
| Section B - AERIAL CHEMICAL WARFARE BOMBS |
|
II–C–3 |
|

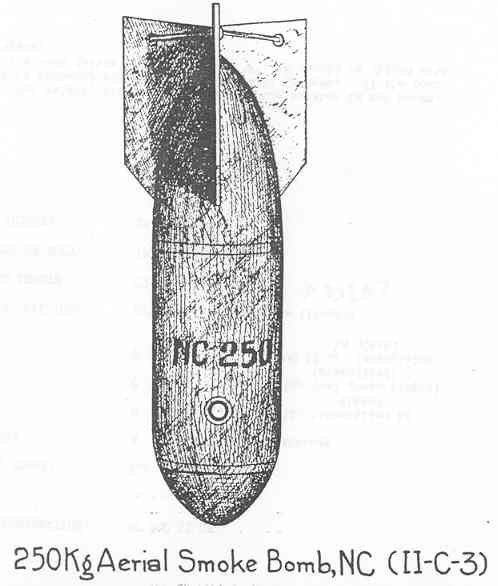

250 kg AERIAL SMOKE BOMB, NC |
| TYPE: | Smoke |
| SIZE: | 250 kg |
| GERMAN DESIGNATION: | NC 250 |
| FUZE: | El. AZ 26 |
| OVERALL COLOR: | Field-gray |
| MARKINGS: | "NC 250" (Stencilled in black) |
| SMOKE FILLING: | FS |
| OVERALL LENGTH: | 63 inches |
| DIAMETER OF BODY: | 14.5 inches |
| TOTAL WEIGHT OF BOMB: | 418 pounds |
|
NOTES: |
This bomb is similar to the 250 kg Aerial Incendiary Bomb. A suspension lug can be fastened on the side of the nose. |
|
II–C |
| Example of Aerial Smoke Bomb |
 |
|
|
