GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section O - SMOKE SIGNALS AND FLARES |
I–O–8 |
SIGNAL, FLARE, HAND |
Handleuchtzeichen Weiss (Rot or Grün) |
PURPOSE: |
This flare signal burns with a very bright color and can be used as a light or colored signal. |
MARKINGS: |
The name "Handleuchtzeichen weiss (rot or grün)", is painted on the side of the sig-nal. |
DESCRIPTION: |

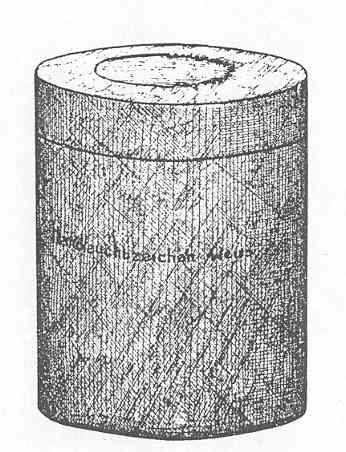

The signal consists of a paraffined cardboard container two inches in diameter and 2.1 inches high. A cloth pull tape removed the cover which the matched and striker. There is a cardboard disc 1.5 inches in diameter, glued to the cover; this disc has 11 teeth around one-half the circumference which serve to identify the signal in the dark when the label cannot be read. The flare burns with a very bright flame, white, red, or green, depending on the color of the signal (weiss, rot or grün). |
I–O–8 |
Signal, Flare, Hand |
Handleuchtzeichen Weiss (Rot or Grün) |
