GERMAN CHEMICAL WARFARE MATERIAL |
Part I - GROUND WEAPONS AND AMMUNITION |
Section M - CHEMICAL WARFARE VEHICLES |
I–M–7 |
VEHICLE, CLOTHING DECONTAMINATION |
Bekleidungs-Entgiftungs-Kraftwagen. Kfz. 93 |
Bkl.Eg.Kw. Kfz. 93 |
PURPOSE: |
This vehicle serves as a mobile laundry for the decontamination of cloth-ing. |
MARKINGS: |
There are no markings of identification value. |
DESCRIPTION: |
The chassies of this vehicle is the standard 6 wheeled Henschel truck with a special van body. The body houses an oil fixed flash boiler fitted with a blower, a hot air blower for clothes drying and two clothing chambers opening on one side of the vehicle. These latter chambers may be fitted with either steam (for decontamination) or hot air (for dry-ing). |
I–M–7 |

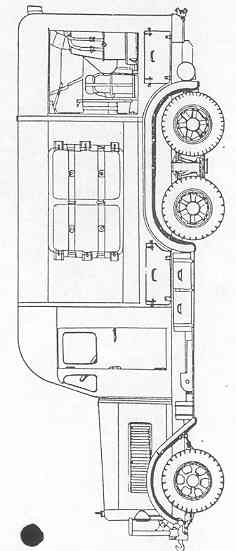

Vehicle, Clothing Decontamination, Kfz. 93 |
Bekleidungs-Entgiftungs-Kraftwagen, Kfz. 93 |
Bkl.Eg.Kw. Kfz. 93 |
