| GERMAN CHEMICAL WARFARE MATERIAL |
| Part I - GROUND WEAPONS AND AMMUNITION |
| Section K - SMOKE POTS AND PROJECTORS |
|
I–K–7 |
| PROJECTOR, SMOKE POT, WG |
|
Behelfsmässiges Wurfgerät für Nebelkerzen |
| PURPOSE: |
|
This projectore fires screening smoke pots. |
| MARKINGS: |
|
There are no markings of identification value. |
| DESCRIPTION: |
|

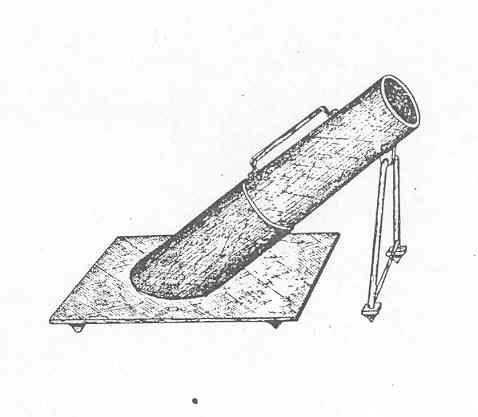

This projector consists of a tube 26 inches long and welded to a steel base plate at an angle of 40 degrees. The base plate measures 12 x 20 inches and has 4 anchoring pegs at the corners. The front of the tube is supported by a bipod. Either the "NbK 39" or "NbKS 39" smoke pot can be fired from this projector. |
|
I–K–7 |
| PROJECTOR, SMOKE POT, WG |
| Behelfsmässiges Wurfgerät für Nebelkerzen |
 |
|
|
