| GERMAN CHEMICAL WARFARE MATERIAL |
| Part I - GROUND WEAPONS AND AMMUNITION |
| Section G - ROCKET SMOKE AMMUNITION |
|
I–G–2 |
|
15 cm SMOKE ROCKET, TYPE 41 |
| CALIBER: | 15 cm |
| GERMAN DESIGNATION: | Wurfgranate 41 w Rn Nebel |
| OVERALL COLOR: | Field-gray |
| MARKINGS: | Nose | White ring (Stencilled) |
| A | II | |
| B | Nb (Stencilled in white) | |
| C | 38 | |
| D | Broken white ring (Stencilled) | |
| Fuze |
| CHEMICAL FILLING: | Oleum impregnated in pumice (solid) (8.6 pounds) |
| LENGHT OF PROJECTILE: | (fuze included) 36.4 inches |
| WEIGHT OF PROJECTILE: | (fuze included) 78 pounds |
| PACKING CASE LABEL: |
|
NOTES: |
This rocket is fired by the 15 cm Chemical Rocket Launcher Type 41. |
| I–G |

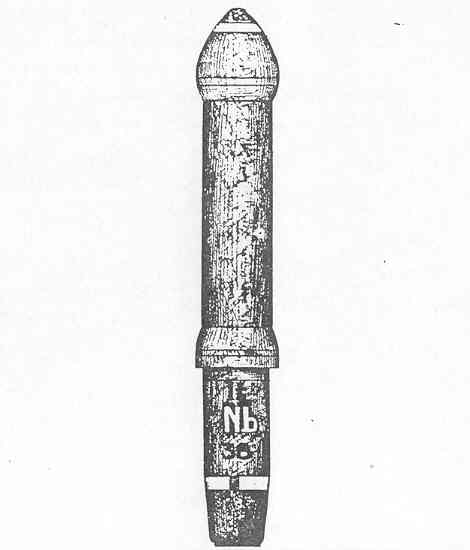

| Example of Rocket Smoke Ammunition |
| 15 cm Smoke Rocket, Type 41 |
 |
|
|
