| Abwurfmunition-Torpedos - Munitions-Handbuch - Heft 3f Flugzeugtorpedo LT 350 |
|

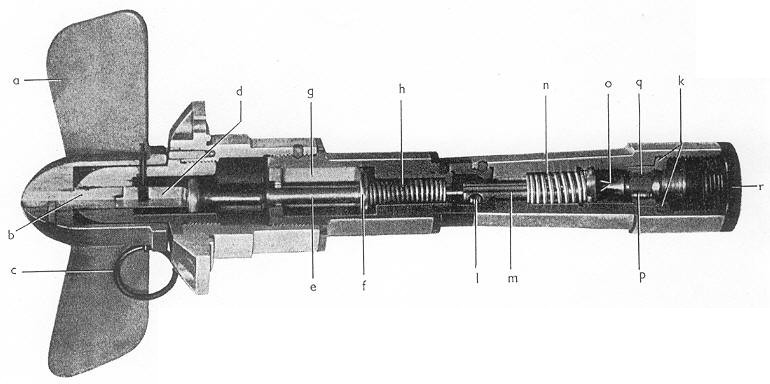

Abb. 4: Zerstörpistole |
|
|
a |
= Propeller |
f |
= Teller |
m |
= Schlagbolzen |
b |
= Kupplungszapfen |
g |
= Salzstück |
n |
= Schlagbolzenfeder |
c |
= Sicherungssplint |
h |
= Feder |
o |
= Schlagbolzenspitzen |
d |
= Kupplungsbolzen |
k |
= Preßring |
p |
= Zündhütchen |
e |
= Sperrstift |
l |
= Kugel |
q |
= Zündhütchenträger |
r |
= Verschlußkappe |
 |
