| U.S.N.B.D. - UNITED STATES - BOMBS AND FUZES; PYROTECHNICS |
| SECTION IV - PYROTECHNICS |
| PART I - AIRCRAFT PYROTECHNICS |
|
DATA: |
U.S. - ARMY FLARE |
|
|
|

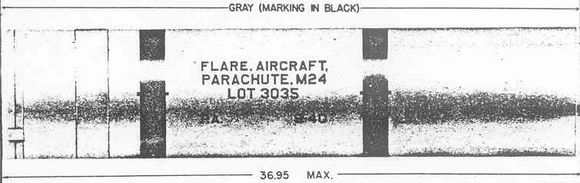

M24 FLARE |
|
|
LENGTH |
37.0 in. | |
|
DIAMETER |
8.0 in. | |
|
WEIGHT |
47.0 lbs. | |
|
BURNING TIME |
3 minutes. | |
|
INTENSITY |
800,000 candle |
|
|
|
power | |
|
COLOR |
White light |
|
|
EFFECTIVE RELEASING ALTITUDE |
4000 - 25000 ft. | |
|
not over 200 mph. |
||
|
RATE OF FALL AFTER IGNITION |
700 ft./min. |
|
USE: |
|
Substitute standard for night observation and bombardment. |
|
DESCRIPTION: |
|
Simple cylinder without hemespherical nose or tail fins. Otherwise similar throughout to the AN-M26 without the nose time fuze. |
|
OPERATION: |
|
Similar to the AN-M26 except that the hang wire acts directly to pull the parachute from the flare case. |
|
REMARKS: |
|
This flare is not produced by the Navy. |
|
|
|
U.S. - ARMY FLARE |
||
|
|
M8A1 FLARE |
|
|
LENGTH |
25.5 in. | |
|
DIAMETER OF CASE |
4.25 in. | |
|
WEIGHT |
18.0 lbs. | |
|
INTENSITY OF LIGHT |
350,000 candle | |
|
|
power |
|
|
COLOR OF LIGHT |
Yellow | |
|
BURNING TIME |
3 min. |
|
|
RATE OF FALL IGNITION |
500 ft./min. | |
|
|
||
|
|
|
USE: |
|
Emergency night landings. |
|
DESCRIPTION: |
|
Cylinder containing an unshaded candle. |
|
OPERATION: |
|
Similar to M24. |
|
REMARKS: |
|
M8 flare is similar to the M8A1 except that the candle burns with a white light of ap-proximately 250,000 candle power. |
|
|
