| U.S.N.B.D. - BRITISH BOMBS AND FUZES; PYROTECHNICS; DETONATORS |
| OBSOLETE BOMBS |
|
|
|
|
|
|
BRITISH |
|
|
FUZING |
No. 19 Nose Pistol |

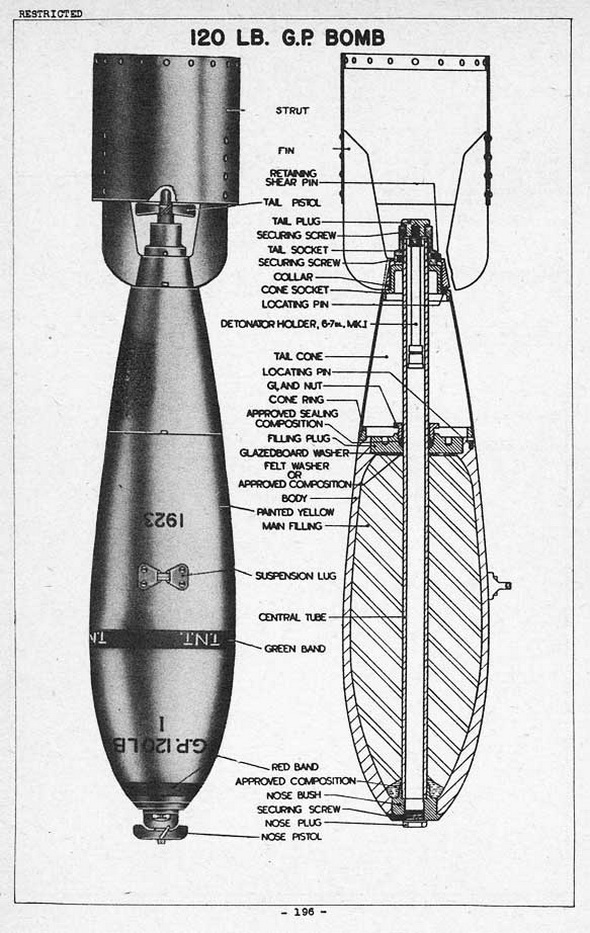

120 LB. G.P. |
|
|
No. 21 Tail Pistol | |
|
COLOR & MARKINGS |
Yellow overall, with ½" | |
|
|
red band around nose and | |
|
|
1" light green band around |
Mks I & II |
|
|
body. Longitudinal green |
|
|
|
bar on body and tail indi- |
(Obsolete) |
|
|
cates explodering scheme. |
|
|
TAIL NO. |
|
|
|
OVERALL LENGTH |
42.4 in. |
|
|
BODY LENGTH |
21.5 in. |
|
|
MAX. BODY DIAMETER |
8.1 in. | |
|
WALL THICKNESS |
0.5 in. | |
|
TAIL LENGTH |
15.7 in. | |
|
TAIL WIDHT |
8 in. | |
|
TOTAL WEIGHT |
120 lbs. (Amatol 80/20) | |
|
CHARGE/WEIGHT RATIO |
25% |
|
BODY CONSTRUCTION: |
|
Streamlined steel casting or forging, threaded at the nose to take the nose adapter which holds the central exploder tube; at the other end of the casting is threaded base plug through which the exploder tube passes. Welded to the end of the casting is a streamlined section of thin metal, containing no explosive, but which is tapered to take the tail ring. The exploder passes through this section also. |
|
TAIL CONSTRUCTION: |
|
Truncated cone fits over the rear section of body and is held to it by a lock nut over the exploder tube; three mild steel fins are fastened to the cone, and rae reinforced by a cylindrical strut. |
|
SUSPENSION: |
|
Single suspension lug secured to body by four screws. |
|
EXPLOSIVE CONTENTS: |
|
Detonator: Instantaneous |
|
Exploder: T.N.T. and C.E. pellets |
|
Filling: 32.5 lbs. T.N.T., or 30 lbs. Amato 80/20 |
|
|
 |
