| U.S.N.B.D. - BRITISH BOMBS AND FUZES; PYROTECHNICS; DETONATORS |
| MISCELLANEOUS BOMBS |
|
|
|
|
|
|
BRITISH |
|
|
FUZING |
Nose Pistol No. 42 |

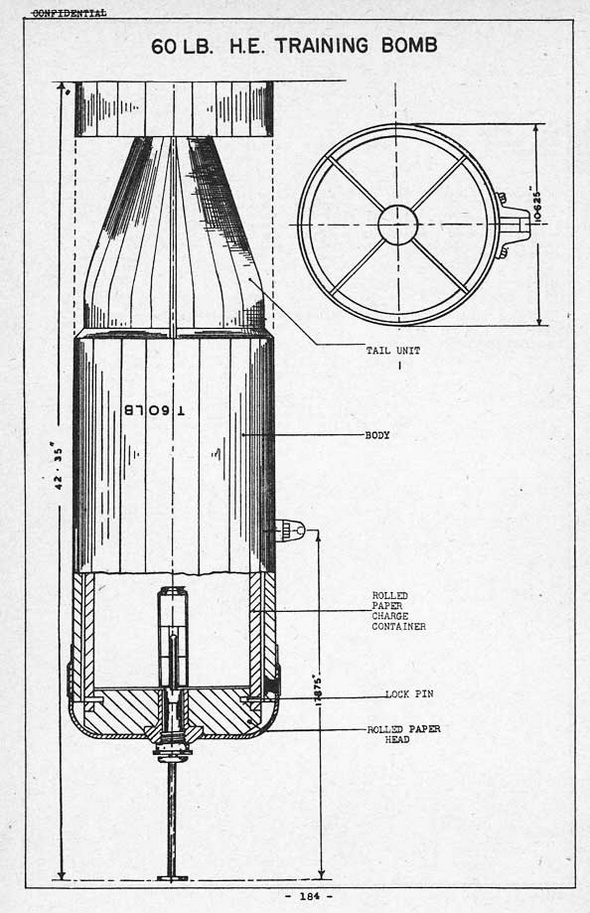

60 LB. TRAINING |
|
COLOR & MARKINGS |
Dark green overall; ½" red | |
|
|
band and 1" light green | |
|
|
band around forward part | |
|
|
of body. |
|
|
OVERALL LENGTH |
36 in. (without extension |
|
|
|
rod). |
(Service) |
|
MAX. BODY DIAMETER |
10.6 in. |
|
|
TOTAL WEIGHT |
60 lb. (approx.) |
|
|
|
|
|
|
|
|
|
|
|
|
BODY CONSTRUCTION: |
|
Body and tail unit are in one piece, manufactured of rolled and pressed paper. The rolled paper charge container, containing pentolite, rests on a felt washer seated on a diaphragm in the body. The head of the charge container is closed by a rolled paper head, pinned, shellacked, and taped in position. The head is recessed to house the pis-tol adapter. A 6" extension rod is fitted to the No. 42 nose pistol, by means of a spring washer after the arming vane cap has been removed. |
|
SUSPENSION: |
|
Single suspension lug approximately 10" from nose of bomb, secured by two bolts. |
|
EXPLOSIVE COMPONENTS: |
|
Detonator: No 52, non-delay, A.S.A. and C.E. pellets |
|
Exploder: 3 C.E. pellets |
|
Filling: Pentolite |
|
REMARKS: |
|
This bomb is designed to be used in training operations of ground personnel, simulat-ing realistic bombing attacks. |
|
|
 |
