ANTI-SUBMARINE BOMBS |
|
|
|
|
BRITISH BOMB |
|
FUZING: |
100 LB. A.S. |
|
Mks I - III: Nose Fuze No. 32. |
||
Mk IV: Tail pistol No. 28 or No. 30 |
||
Mk VI: Tail pistol No. 30 or Tail Fuzes No. 875 |
||
or No. 895. |
Mks I - IV (Obsolescent) |
|
COLOR & MARKINGS: |
|
|
Dark green overall; ½" red band 1" from nose; |
Mk VI (Service) |
|
1" light green band 4" from nose. Earlier mods |
|
|
originally painted yellow. |
|
|
OVERALL LENGTH |
42" (Mk VI is several |
|
|
inches longer with nose | |
|
attachment) | |
BODY LENGTH |
31" (Mks I - III) | |
|
24.08" (Mks IV - VI) | |
MAX. BODY DIAMETER |
8.05" | |
WALL THICKNESS |
0.11" | |
TAIL LENGTH |
18" | |
TAIL WIDTH |
8" | |
TOTAL WEIGHT |
98 lbs. | |
CHARGE/WEIGHT RATIO |
45% (approx.) |
|
BODY CONSTRUCTION: |
Mk IV – Hollow nose forging or casting and cast or forged tail adapter welded to sheet steel casing. Hollow nose threaded to take solid flat nose plug locked by a locking screw. Casing made in two parts welded together longitudinally. Tail adapter receives exploder container which is locked and sealed in position, housing detonator holder pistol. |
Mk III – Nose of bomb fitted with adapter for nose fuze; three internal strengthening rings; tail adapter. A ballistic cap screws on the nose to prevent ricochet. |

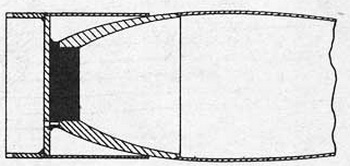

Mk VI – Nose plug and cup shaped nose attachment welded on as in drawing below. |
TAIL CONSTRUCTION: |
Mk IV, No. 7 Mk I: Sheet metal cone with cylindrical strut attached by four fins, se-cured to tail adapter by four spring clips on the cone. Reach rod, with arming vanes on after end, extends through cone and engages arming fork of tail pistol. |
Mk III: Cylindrical strut which is attached by fins to a dome, which is secured to the bomb by a central bolt. |
Mk IV: No. 56 Mk I tail secured by four locking screws threaded through four cone securing bosses welded on at an angle to tail cone; screw thread inward and aft to engage slots in body. |
SUSPENSION: |
Horizontal suspension by single lug, secured by screws projecting through the case and into a steel block support pad welded to interior of body; suspended from universal bomb carrier. |
EXPLOSIVE COMPONENTS: |
Detonators: |
(See Appendix I, page 309) |
Exploders: |
C.E. |
|
Filling: |
Mk IV: 45 lb. R.D.X./T.N.T. 60/40 or 44 lb. T.N.T. |
|
|
Mk VI: 49 lbs. Torpex (When filled with Torpex, a topping of T.N.T. is added at the nose and base. |
Remarks: |
(1) |
No. 30 Tail Pistol with needle striker to be used in Mk IV for A/S bombing; No. 28 can be used in place of No. 30 for land bombardement. |
(2) |
Mk V never protuced. |
|
|
