FRAGMENTATION BOMBS |
|
|
|
BRITISH BOMB |
||
FUZING |
Fuze No. 880 or 881 |

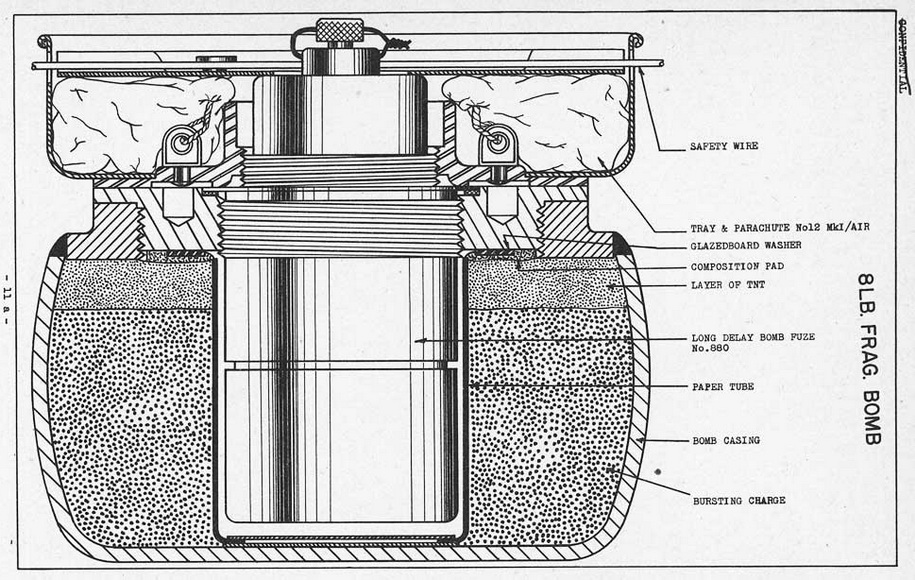

8 LB. FRAG |
COlOR & MARKINGS |
Dark green overall; ¼" red |
|
|
band around top and ½" |
|
|
light green band around |
|
|
center of bomb |
|
PARCHUTE No. |
Tray No. 12, Mark I, with |
Mk II |
|
parachute |
|
OVERALL LENGTH |
4.2" |
(Service) |
BODY LENGTH |
3.02" |
|
MAX. BODY DIAMETER |
5" |
|
WALL THICKNESS |
0.125" |
|
TOTAL WEIGHT |
8 lb. approx. |
|
CHARGE/WEIGHT RATIO |
22% approx. |
BODY CONSTRUCTION: |
The Bomb body consists of a pot-shaped cast steel cylinder, open at the top. A steel neck ring is welded to the open end of the body, having internal threads to recei-ve the adapter to which the parachute tray is secured. Extending through the adapter is the fuze, which is enclosed by a 2" dia. paper tube extending through the bomb body. |
PARACHUTE: |
The parachute is 12" in diameter and is ancased in a cylindrical steel body of a dia-meter slightly lese than the maxium diameter of the bomb body. A safety pin extends through the parachute container, secured by a spring clip. |
EXPLOSIVE COMPONENTS: |
Main Filling: |
1- ¾ lb. approx. of T.N.T. or R.D.X./T.N.T. 60/40, or |
1 - ½ lb. approx. of Amatol 50/50 or 60/40 or |
||
Pentolite/D 1. (When filled with anything but T.N.T., a ¼" topping of T.N.T. is added.) |
REMARKS: |
Mk I had smaller filling hole than II; never filled or put into service. |
|
|
