TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION
SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

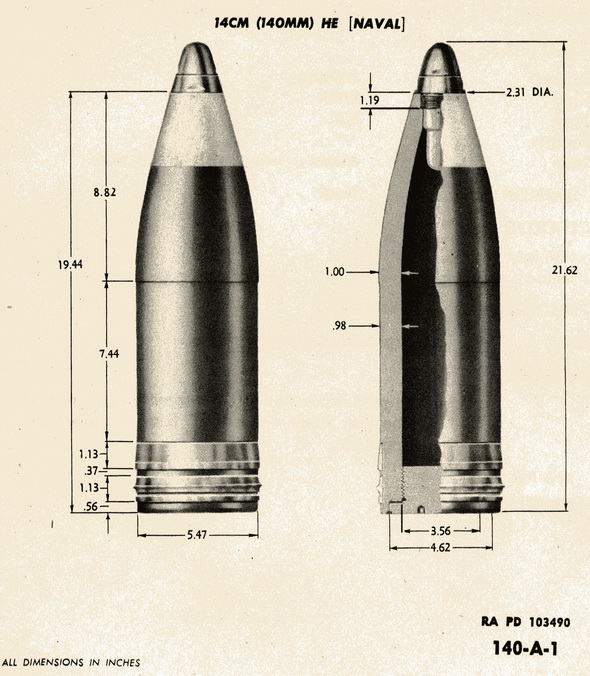

140-A-1

PROJECTILE:

14 cm (140 mm) HE [Naval]

WEAPONS:

14 cm Low Angle Gun [Naval]
PROJECTILE:

Caliber:

 140 mm

Kind:

 Shell

Type:

 HE

Weight:



Color:

Maroon body with green Nose

BANDS:

None
CHARGE:

Weight:



Kind:



TRACER:

None

FUZE:

Navy Model 88 Nose Fuze

REMARKS:

The Model number of the projectile or that of the gun from which fired have not been determined.
