105-A-2

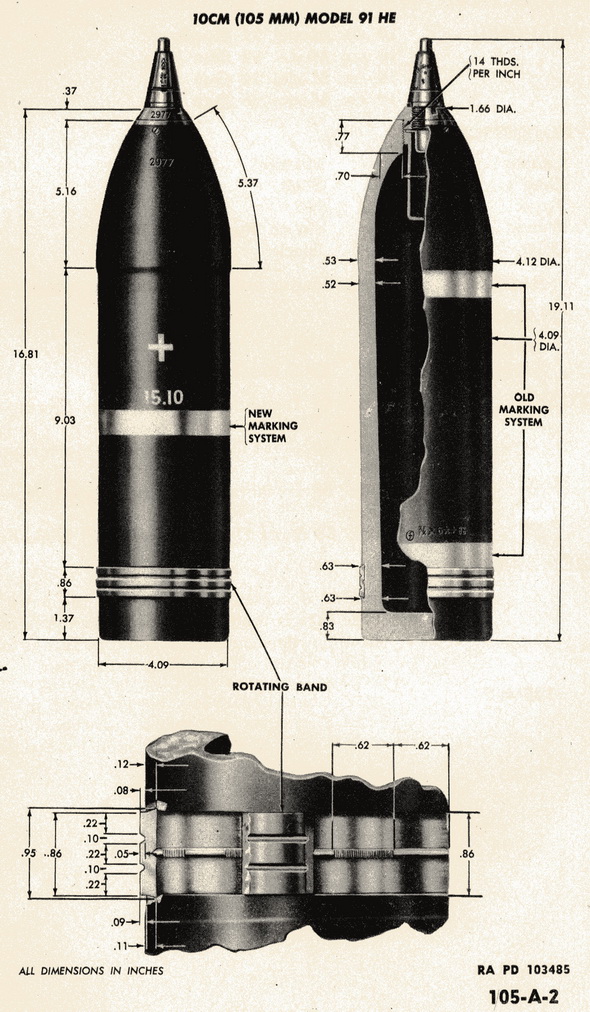

PROJECTILE:	10 cm (105 mm) Model 91 HE
WEAPONS:	10 cm Model 91 Howitzer
	10 cm Model 92 Gun
	10 cm Model 14 Gun
	10 cm Model 38 Gun
PROJECTILE:
Caliber:	105 mm
Kind:	Shell
Type:	HE
Weight:	(With Fuze) 35.3 lbs.
Color:	Black
BANDS:	One yellow or one yellow and one white
CHARGE:
Weight:	5 lbs.
Kind:	TNT has been found
FUZES:	Model 88 Instantaneous (Howitzer-Mortar type) Nose Fuze
	Model 88 Short Delay (Howitzer-Mortar type) Nose Fuze
	Model 88 Instantaneous (Gun Type) Nose Fuze
	Model 88 Short Delay (Gun Type) Nose Fuze
REMARKS:	Captured documents indicate that the howitzer type fuze is used when this projectile is fired from a howitzer and that a gun type fuze is used when this projectile is fired from a gun.
