TM E9-1901 - IDENTIFICATION OF JAPANESE SHELL AND SHELL FRGAMENTS;
LOCATION OF EMENY BATTERIES

PART TWO - READY REFERENCE SECTION
SECTION IX – PROJECTILE DATA AND ILLUSTRATIONS

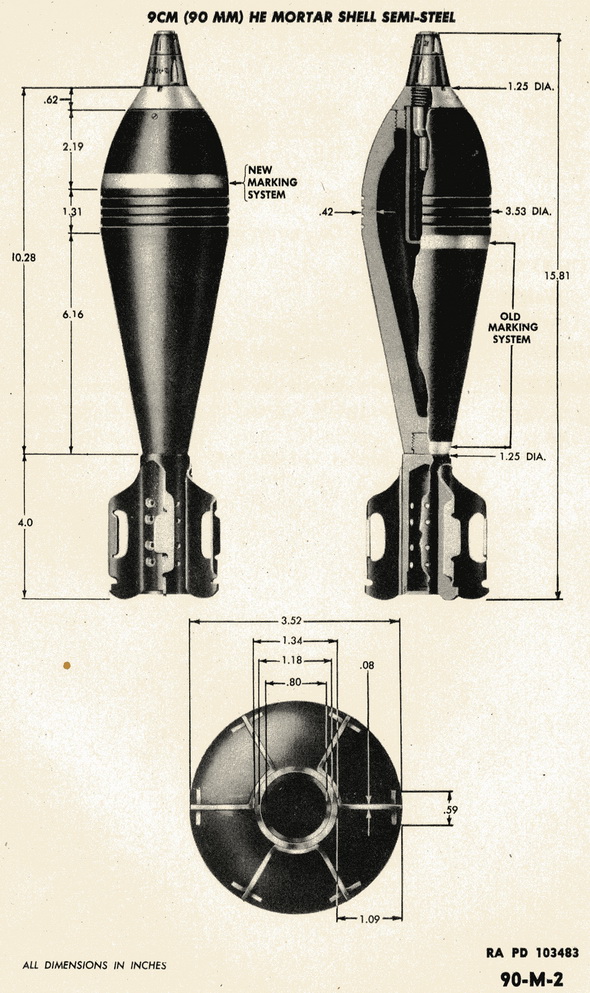

90-M-2

PROJECTILE:

9 cm (90 mm) HE Mortar Semi-steel

WEAPONS:

9 cm Mortar
PROJECTILE:

Caliber:

 90 mm

Kind:

 Mortar Shell

Type:

 HE

Weight:



Color:

Black

BANDS:

One green or one yellow and one green
CHARGE:

Weight:



Kind:



FUZES:

Model 93 Mortar Fuze

REMARKS:

The model number of the mortar from which this projectile is fired has not been determined.
